Paramo-O grid - Grid points tool issue

In paramo tool Grid Tool behaves strange way. If Count X or Count Y values are set to "1" nothing is shown in 3D. Only things started to be shown from value "2". In my opinion grid should not show anything if Count X or Count Y is set to "0".

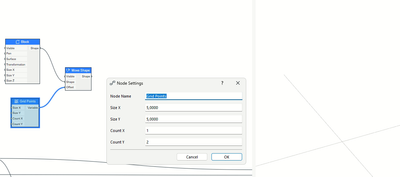

Count X = 1, Count Y=2. Nothing in 3D.                                       Count X = 2, Count Y=1. Nothing in 3D.

AlgimantasKuprenas_0-1695102010461.png  AlgimantasKuprenas_1-1695102065874.png



Count X = 2, Count Y=2. Finally 3D starts to be shown.



Please don't tell that Param-O is expermental tool and because of that it works not like it should be. This expermental tool is already implemented from version 24.





GRAPHISOFT BIM Manager Training Week attendee
ArchiCAD v9 - v26 INT / NOR (5002)
cpu i5-12600K @ 5.0Ghz, ram 32GB, gpu 1060 GTX
ssd NVMe, Windows 11
ArchiCAD Discord channel: https://discord.gg/QdWxSJ33

3 REPLIES 3
Barry Kelly
Moderator

Have a look at the 'distribute existing object' example here ...



https://community.graphisoft.com/t5/Libraries-objects/Create-Custom-Objects-on-Windows-and-macOS-wit...



This lets you multiply in a circle or a grid.



Change the 'GDL object' node to an object you have in your library and attach it to the grid example.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11



Downloaded example, but that one also showing nothing when I change COUNT to "1" - in this value all elements disapears. Same issue in this one.




GRAPHISOFT BIM Manager Training Week attendee
ArchiCAD v9 - v26 INT / NOR (5002)
cpu i5-12600K @ 5.0Ghz, ram 32GB, gpu 1060 GTX
ssd NVMe, Windows 11
ArchiCAD Discord channel: https://discord.gg/QdWxSJ33

A value of 1,5 on count x & y will show only one object (not very logical...)
