.DWG CONVERSION SETTINGS

Steve Jepson · ‎2022-02-04

I have an AutoCAD .dwg file where everything in the model space is drawn at 1:1

I need to open with file with Archicad so that everything can be view in my Plan View at 1/4" = 1'-0"

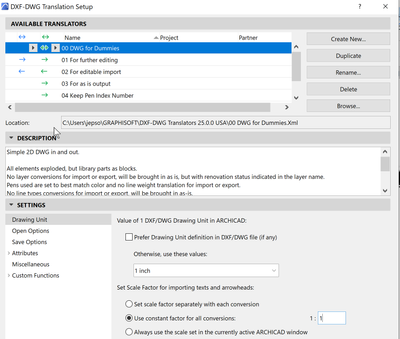

What are the translator setting I need to use ?

ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25

Steve Jepson · ‎2022-02-04

Too easy - this worked perfectly.

ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25

Go to post

DGSketcher · ‎2022-02-04

I am purely metric, but if you open a new worksheet, use the quick settings at the bottom of your screen to set the view scale to 1/4" then import the drawing from model space it should come in correctly. There is a dialog at import that gives a unit conversion option that may require a quick check. If all else fails select the imported DWG and scale to suit.

Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)

Steve Jepson · ‎2022-02-04

Too easy - this worked perfectly.

ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25
