Riser Diagram

Mario Sacco
Expert

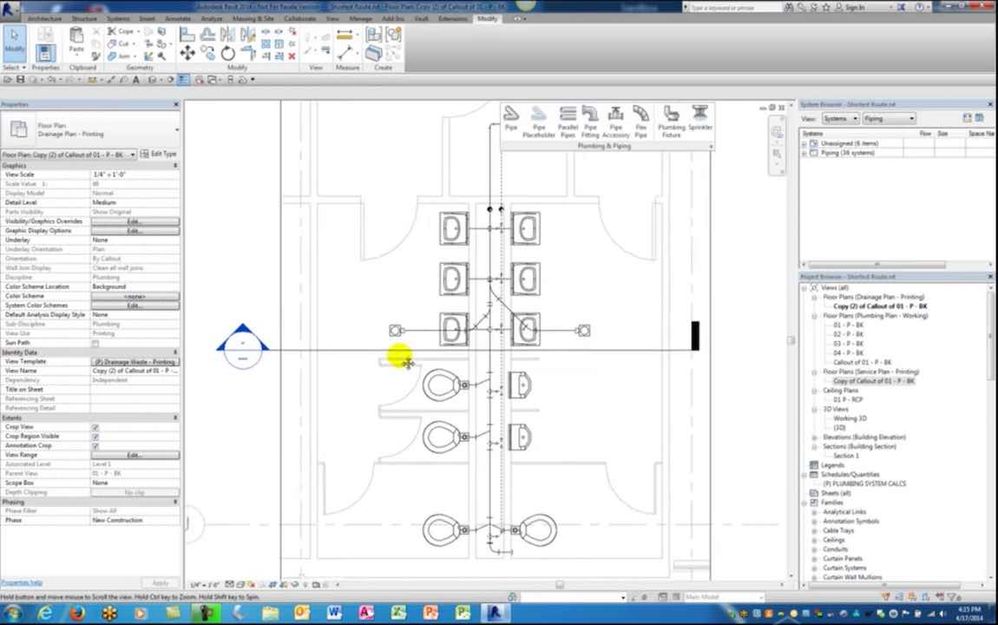

Is it possible with MEP in Archicad have a riser diagram o wiring diagram such us in the video in revit at the minute 1:26?
https://www.youtube.com/watch?v=BOyL3gRfPTA

MacBook M1 Max 64GB- OS X 12.2.1 - Archicad 27
https://www.archiradar.it/en/
4 REPLIES 4
Mario Sacco
Expert

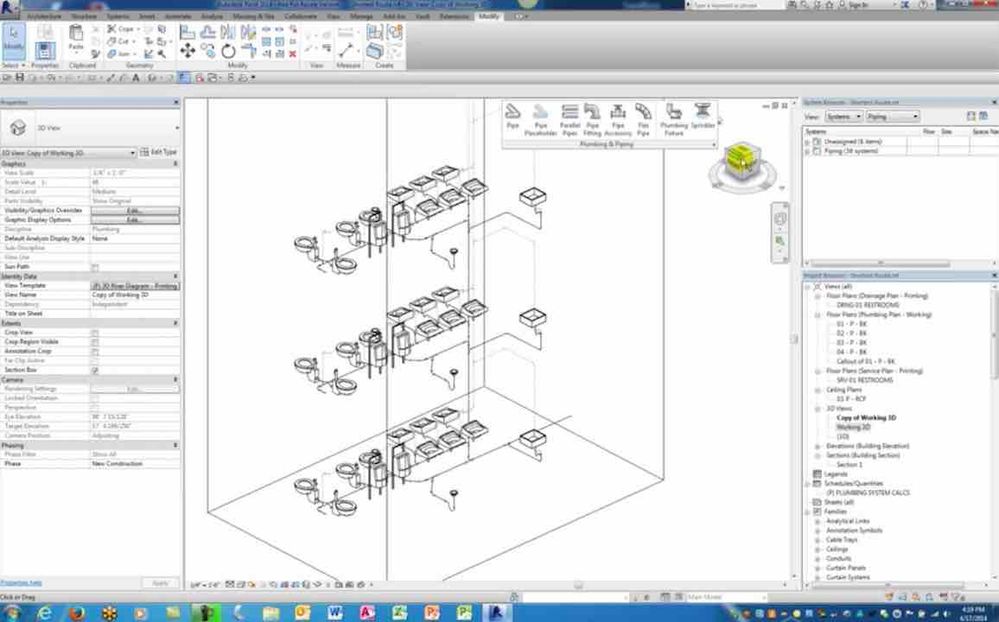

An other image
MacBook M1 Max 64GB- OS X 12.2.1 - Archicad 27
https://www.archiradar.it/en/
The Revit MEP Modeler seems more functional than the ArchiCAD MEP Modeler, but yes, we can model that using the ArchiCAD MEP Modeler - or without it. There are some examples on youtube

https://youtu.be/bTKGN2pJD2A

https://youtu.be/m9dIqa4zAys

https://helpcenter.graphisoft.com/videos/graphisoft-mep-modeler/graphisoft-mep-modeler-mep-modeling-...

ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25

GS does not seem to be placing enough importance on the ArchiCAD MEP Modeler.

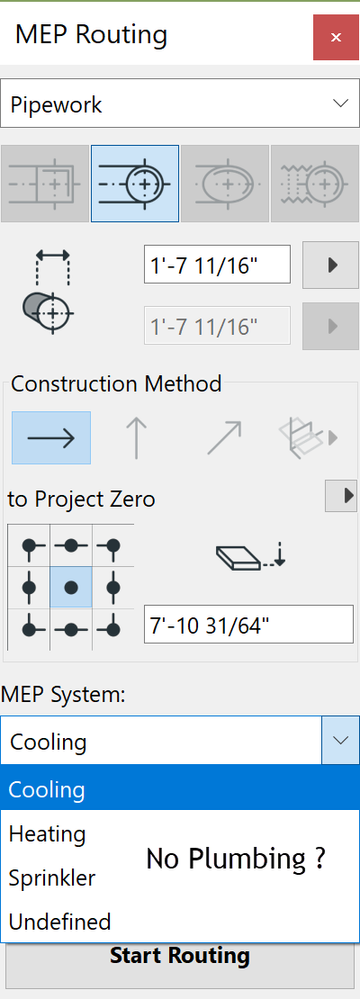

For example, how is it possible that they thought it would be OK not to include a Predefined MEP System category for Plumbing in the Routing dialog box ?
And fitting types for Pipe are only for welded and flanged connections.
We have to find or make our own fittings and save them as MEP parts.
