Design forum

Door with Window frame Settings

AZain29
Contributor

Is there a way to make window frameless side by side with door with standart frame? I did not find the settings in the door selection settings as shown.

Thx in advance.



PC Windows 10

Archicad 25 solo 5011

1 ACCEPTED SOLUTION

Solution

A value of zero does not always work because in the script the object is then trying to draw something that has no size creating errors.

It depends how the object is scripted.

The sill looks like if you set it to zero, it just uses the default frame thickness.

Strange though that it lets you set the side frame to zero.



The top frame is all one part over the door and the window.

So you won't be able to control that separately.

The object is just not written to do what you want.



You could have a look at 3rd party doors and windows.

They may (or may not) be able to do this sort of thing, but you can expect to pay for the privilege.



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

View solution in original post

11 REPLIES 11

Barry Kelly
Moderator

I am not 100% sure of what you are trying to achieve.

Maybe just model a thin glass wall and add a door to it?

Or use the curtain wall tool where you can make frames invisible and add a door panel with frames?



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

AZain29
Contributor

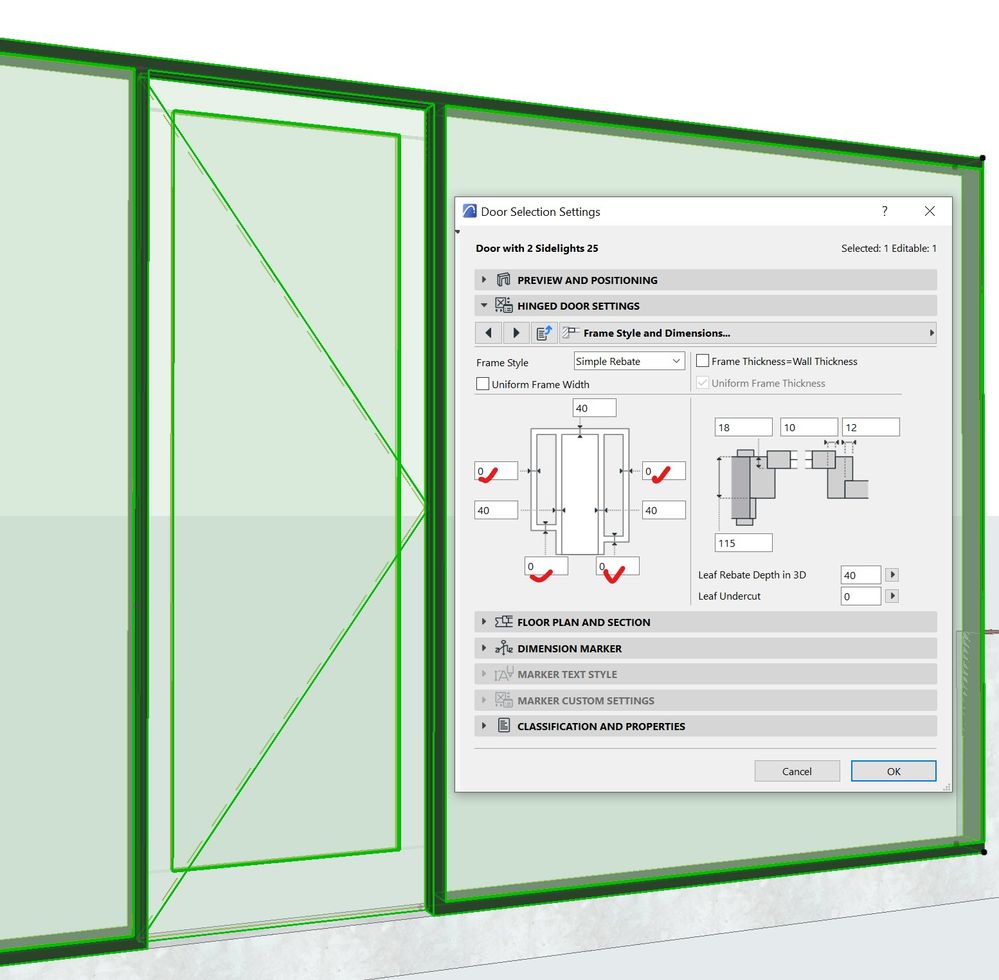

Can we set the window to be "frameless" without remove the door frame. see the image, i want to remove all window frames in the red area.

I want to keep the door as they are (easier to make the door schedule), so i do not want to make the model.

If i build with curtain, the wall hole will not flexible. this door with window are study so they will move to some where. Or is there a way to make curtain automatically cut the wall?

If the object will not allow you to have zero width frames then just add a door to a thin glass wall.




Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Hmooslechner
Advisor

As Barry suggested, make a thin glass-wall and put in there a normal door whatever form you want.

If You then need a thin glassframe of metal - you could use several options - profile-manager-profiles os Morph-auto-framing.



like this for others:

AC5.5-AC25EduAut, PC-Win10, MacbookAirM1

Wall glass are good result. But as i mention before, i need the "door with frameless window" in the door schedule list. The reason is to avoid miss match with the project field.

If i build custom door with frameless window, the other problem are about stretching.

After all, on the other window, we want the glass level are about 1000mm from the finish floor (see attached image). The image shown that the bottom frame of window set to 0 (zero), but in the 3d model the window still have frame, not like in the side of window.

If the zero width frame does not work, what happens if you just make it a very small number like 1 or 0.1?



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

This value absolutely work. But why not work for 0. And how about the top frame? any suggestion?

Solution

A value of zero does not always work because in the script the object is then trying to draw something that has no size creating errors.

It depends how the object is scripted.

The sill looks like if you set it to zero, it just uses the default frame thickness.

Strange though that it lets you set the side frame to zero.



The top frame is all one part over the door and the window.

So you won't be able to control that separately.

The object is just not written to do what you want.



You could have a look at 3rd party doors and windows.

They may (or may not) be able to do this sort of thing, but you can expect to pay for the privilege.



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

something like this additional code for 3D in the GDL just to start:



if addwin = 1 then
unid = 1

addx a/2

!y control
HOTSPOT 0, 0, 0, unid, Win[1][3], 1+128 : unid = unid +1 !BASE
HOTSPOT 0, Win[1][3], 0, unid, Win[1][3], 2 : unid = unid +1 !MOVE
HOTSPOT 0, -1, 0, unid, Win[1][3], 3 : unid = unid +1 !REF

addy Win[1][3]

HOTSPOT 0, Win[1][2], 0, unid, Win[1][1], 1+128 : unid = unid +1 !BASE
HOTSPOT Win[1][1], Win[1][2], 0, unid, Win[1][1], 2 : unid = unid +1 !MOVE
HOTSPOT -1, Win[1][2], 0, unid, Win[1][1], 3 : unid = unid +1 !REF
!y control
HOTSPOT Win[1][1], 0, 0, unid, Win[1][2], 1+128 : unid = unid +1 !BASE
HOTSPOT Win[1][1], Win[1][2], 0, unid, Win[1][2], 2 : unid = unid +1 !MOVE
HOTSPOT Win[1][1], -1, 0, unid, Win[1][2], 3 : unid = unid +1 !REF

wallhole 4, 1,
0,0,15,
Win[1][1], 0, 15,
Win[1][1], Win[1][2], 15,
0, Win[1][2], 15

material gs_glass_mat

prism_ 4, glassthickness,
0,0,15,
Win[1][1], 0, 15,
Win[1][1], Win[1][2], 15,
0, Win[1][2], 15

del 2

else
endif !!! if addwin = 1 then

parameterdescription for the needed additional parameters:

addwin = 1 = switch to turn it all on and off

Win[1][1] = Window-X
Win[1][2] = Window-y
Win[1][3] = Window-bottomhight

glassthickness = glass-thickness

AC5.5-AC25EduAut, PC-Win10, MacbookAirM1

And another way? Put a normal Window aside the single-door? In the schedule-List,  it would be an extra window, not a combination, but would that matter?



like this:

AC5.5-AC25EduAut, PC-Win10, MacbookAirM1

Yeah, another part means could be another schedule list page. Avoiding search and flip the paper.
