Making a curved profile

A-D
Participant

Hi,

I have made a custom profile wall. I am trying to make it curved. How do I do this?

Thanks 🙂

3 REPLIES 3

Barry Kelly
Moderator

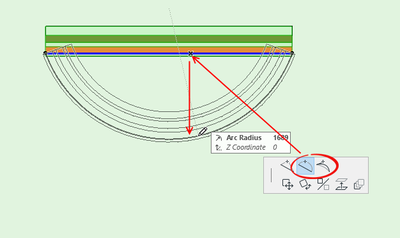

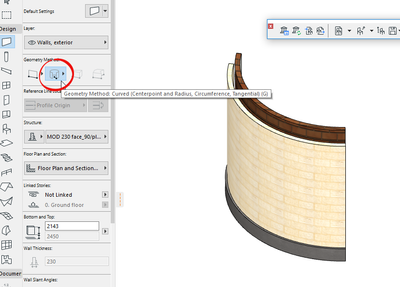

If you mean curved in plan, then just use one of the curved geometry methods.






Or if you have placed a straight wall, you can curve it with the pet palette options.








Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Hi Barry

Does this work if it is a custom profile?

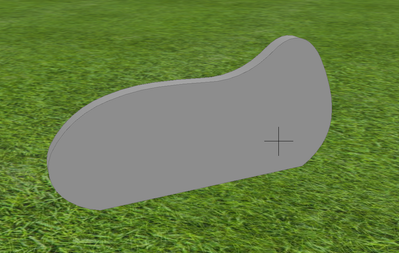

This is my custom profile wall

Screen Shot 2022-07-22 at 10.38.12 AM.png

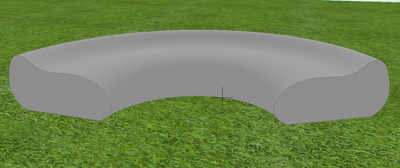

This is what happened when I tried to curve it:

Screen Shot 2022-07-22 at 10.38.25 AM.png

 How can I make my custom profile curve like a standard wall?

Thanks

What you show is what you will get.

The complex profile shape is extruded along the length of the wall.

It is not a wall you can bend.



If you need it to be a wall, then all I can suggest is to place a regular curved wall.

Intersect it with your profile wall.

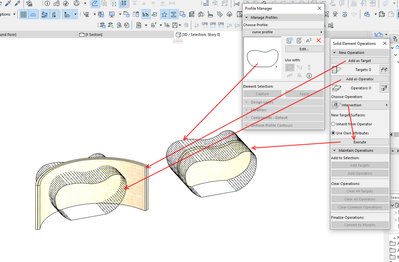

Then do a Solid Element Operation to form an 'intersection'.








Make sure the curved wall and complex profile wall are in different layers with different intersection group numbers otherwise they will automatically try to trim each other.

My layer for the complex profile wall is also set to 'wire frame'.

Hide the layer for the operator (complex profile wall).

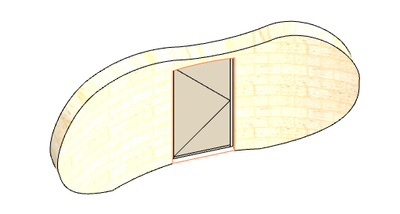

This way it is still a wall and you can add doors and windows.






Otherwise you could use a 'shell' and adjust the perimeter  (boundary) shape of the shell.
