Dimension position

Anonymous
Not applicable
Hello.

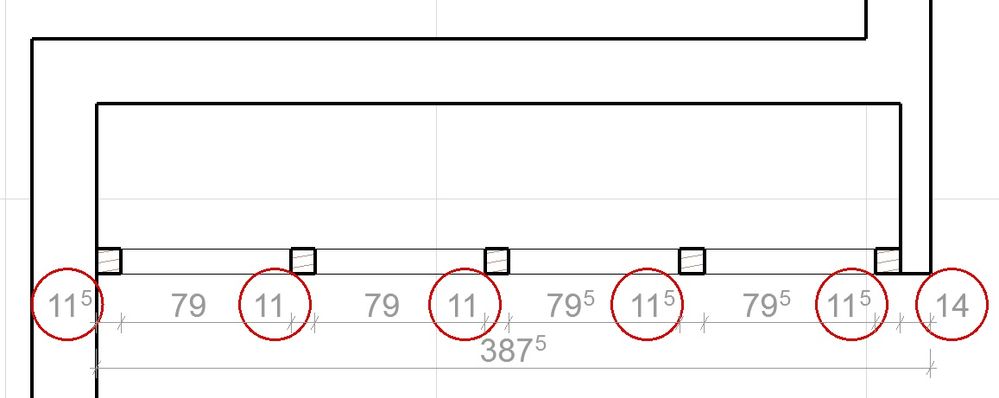

I am searching for the setting which determines the dimension text to automatically move outside the dimension space, once it gets bigger than the dimension space. Does anybody have a clue where it is? I am trying to deactivate it.
Thank you.
4 REPLIES 4

igreere:

In AC20: Dimension Tool Settings > Dimension Details > Dimension Text Placement Method: Centered. Your signature indicates AC16, I don't know which version this was introduced.

David
David Maudlin / Architect

www.davidmaudlin.com

Digital Architecture

AC26 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.15.7

Anonymous
Not applicable
Thank you very much for your answer.
Archicad 16 does not have this setting, nor does Archicad 18, as I found out. I don't know about Archicad 19.
But thank you again.

igreere:

This feature is in AC19, so I guess that is when it was introduced.

David
David Maudlin / Architect

www.davidmaudlin.com

Digital Architecture

AC26 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.15.7

Laszlo Nagy
Community Admin
Community Admin
Yes, this was a new feature in ARCHICAD 19.
There are two clips about the new Dimension Placement Methods introduced in AC19:

https://www.youtube.com/watch?v=vg7H9b8iloM&list=PLnXY6vLUwlWVl8fLABOSLCE-1ONHihRxe&index=17
https://www.youtube.com/watch?v=naxX8XxStzo&list=PLnXY6vLUwlWVl8fLABOSLCE-1ONHihRxe&index=18
....................................................................................................
Get Archicad Tips at https://twitter.com/laszlonagy
AMD Ryzen 1700X CPU, 48 GB RAM, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), WIN10 PRO ENG, AC20-AC26
Loving Archicad since 1995
