LABEL rotation issue with hotlink *.mod files in Teamwork

Algimantas Kuprenas
Enthusiast

1. Made *.mod file like this with horizontal LABEL on bottom left corner:

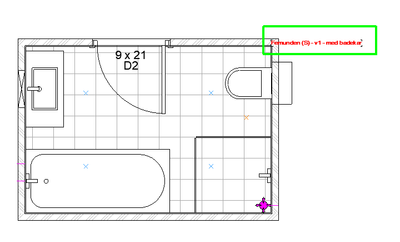

2. Placed *.mod file in Teamwork file and rotated it 180 degrees with "Adjust angle of fixed angle object.... " ticker on. LABEL placed in top right corner:




3. Other users in TEAMWORK project see same *.mod file LABEL it's shown below with text out of *.mod file. Also If I LEAVE Teamwork project and JOIN again also I see this LABEL jumped out from its position.




I have ~50 such mod files in my project.



GRAPHISOFT BIM Manager Training Week attendee
ArchiCAD v9 - v25 INT / NOR
i5-12600K @ 5.0Ghz, 32GB ram, GeForce GTX 1060 (6GB)
NVMe SSD - Read - 3 GB/s, Write - 2GB/s, Windows 11
ArchiCAD Discord channel: https://discord.gg/VcXcNChkKe

7 REPLIES 7

Burak
Contributor

Give a try to adjust text's anchor point to middle and place it to its place accordingly. Before joining your host project, clean local data files (leave teamwork project or clean TW files.) and then rejoin to host project.

I hope it works.

Algimantas Kuprenas
Enthusiast

Middle point is not ok for me because on different scales it starts expands from outside walls. But I will try it in future.

GRAPHISOFT BIM Manager Training Week attendee
ArchiCAD v9 - v25 INT / NOR
i5-12600K @ 5.0Ghz, 32GB ram, GeForce GTX 1060 (6GB)
NVMe SSD - Read - 3 GB/s, Write - 2GB/s, Windows 11
ArchiCAD Discord channel: https://discord.gg/VcXcNChkKe

You are not scaling your texts with the current scale of the project then? (Scale with plan/Model size?)

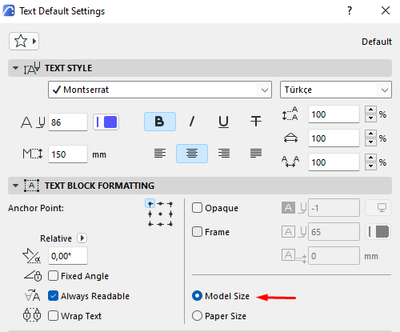

Looks like I described issue a bit wrong. This is not text, but its label 😞 and labels do not have "Model Size" parameter. I need to use label because it takes parameter (Name) out of door element inside *.mod file
