2D DETAIL LIBRARY

NILAM
Participant

Is there anyway to create a library of standard 2D details without having to create a separate pln file that people have to copy and paste from?

5 REPLIES 5
Kevin Lee
Enthusiast

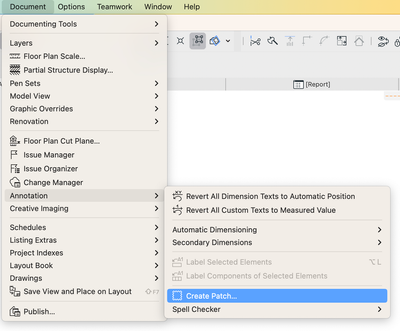

this is a bit old school, but you can try the archicad "Patch" tool for saving typical details.




https://help.graphisoft.com/AC/18/INT/AC18Help/03_1_Elements_Virtual_Building/03_1_Elements_Virtual_...



Kevin Lee

Director of Technology | BIM

TZG Architects
Barry Kelly
Moderator

If you mean a large scale 2D detail with annotation, you can simply select what you want and then save it as a library object (FILE menu > Libraries & Objects > Save selection as a Library Part > Object).

You will need to save it in you office library that you can then load in every project.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
mthd
Ace

Or you can also create a template file with your details saved in the project browser as worksheets. You can also bring in new details from other sources and file formats like DWG & PDF and save them as worksheets too.

AC8.1 - AC27 ARM AUS + CI Tools
Apple Mac Studio M1 Max Chip 10C CPU
24C GPU 7.8TF 32GB RAM OS Ventura
Gortz
Booster

I kind of liked the Contrabim setup with pinning template objects to a renovation filter. You have the video here: https://www.youtube.com/watch?v=9D3DDo9GY8c&t=938s

CB has a highly organised template using the renovation tools.
