Automatic dimensioning does not dimension columns
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2010-07-10
02:44 PM
- last edited on
2023-05-23
12:00 AM
by
Gordana Radonic
2010-07-10
02:44 PM

Labels:
- Labels:
-
Dimension Tools
4 REPLIES 4
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2010-07-18 03:37 PM
2010-07-18
03:37 PM
As far as I know automatic dimensioning only works on walls.
If you noticed dimensions for columns the they may well have been placed when the columns were created as part of a design grid.

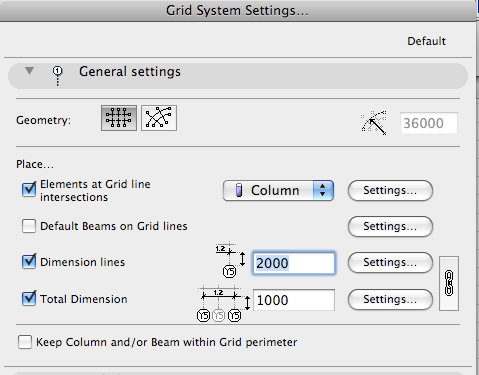

The design grid is found under Design>Grid system . See the screenshot which allows you to place columns based on the gridlines and also to dimension them.
If you noticed dimensions for columns the they may well have been placed when the columns were created as part of a design grid.
The design grid is found under Design>Grid system . See the screenshot which allows you to place columns based on the gridlines and also to dimension them.
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2010-07-18 07:08 PM
2010-07-18
07:08 PM
True, but that only dimensions the center of the column but not the end points, and for me it's important that columns are dimensioned at the end points as well... I noticed that at the Essentials Tutorial Guide, that when I select elements in a marquee area and the type is not only Wall, the automatic dimensioning dimensions the other elements too, this was the case in the Tutorial Guide but not in my projects
.... so now I can't find what is the setting in the Guide so that I can paste it in my Work Environment.


Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2010-07-19 03:20 PM
2010-07-19
03:20 PM
Try to use the Interior Dimensioning instead of Exterior Dimensioning. That one has settings for Column dimensioning.
When you create the interior dimension you will have to input a line.
This line will have to cross those Columns you want dimensioned.
When you create the interior dimension you will have to input a line.
This line will have to cross those Columns you want dimensioned.
Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac28
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac28
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2010-07-19 03:23 PM
2010-07-19
03:23 PM
Thanks Laszlo.... thats a really good tip.
