Avoiding interior shadows in elevations /sections
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2017-07-31
07:25 PM
- last edited on
‎2023-05-30
10:00 AM
by
Rubia Torres
‎2017-07-31
07:25 PM
I have a problem that is driving me crazy! I want to do an elevation of my building - that is, I want to show the interior of my building (section) while showing the elevations of the adjacent buildings (elevation).
The problem resides in the interior shadows; I want the exterior shadows to project onto my exterior walls, slabs and ceilings. However, at the same time, I don't want shadows inside my building, and that's what's happening now. The way I see it, I can only have shadows or no shadows at all.
I know I can copy an elevation /section and paste it above and therefore delete the unwanted shadows. I'd rather not use this method, because my project stops to be dynamic (if I make an alteration, it will not synchronize with my sections /elevations).
Is there a solution for my conundrum?

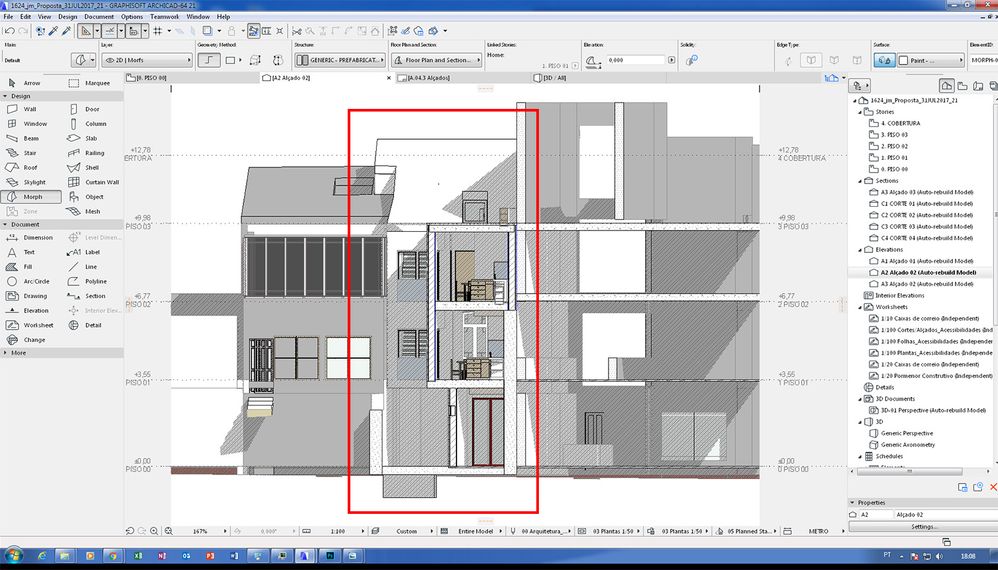

P.S.: I'm attaching a screenshot of the view in question
Labels:
- Labels:
-
Elevations
2 REPLIES 2

Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2017-08-01 08:56 PM
‎2017-08-01
08:56 PM
JoĂŁo:
One option is to create two elevations: one with shadows on and the other with shadows off. Place these two elevations on a Layout sheet, then adjust the borders of the two placed Views so they align, but the non-shadowed View shows for the interior and the shadowed View shows for the exterior.
David
One option is to create two elevations: one with shadows on and the other with shadows off. Place these two elevations on a Layout sheet, then adjust the borders of the two placed Views so they align, but the non-shadowed View shows for the interior and the shadowed View shows for the exterior.
David
David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC28 USA • Mac mini M4 Pro OSX15 | 64 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14
www.davidmaudlin.com
Digital Architecture
AC28 USA • Mac mini M4 Pro OSX15 | 64 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2017-08-15 04:32 PM
‎2017-08-15
04:32 PM
Thanks, I will try that method!
