Here is my problem:

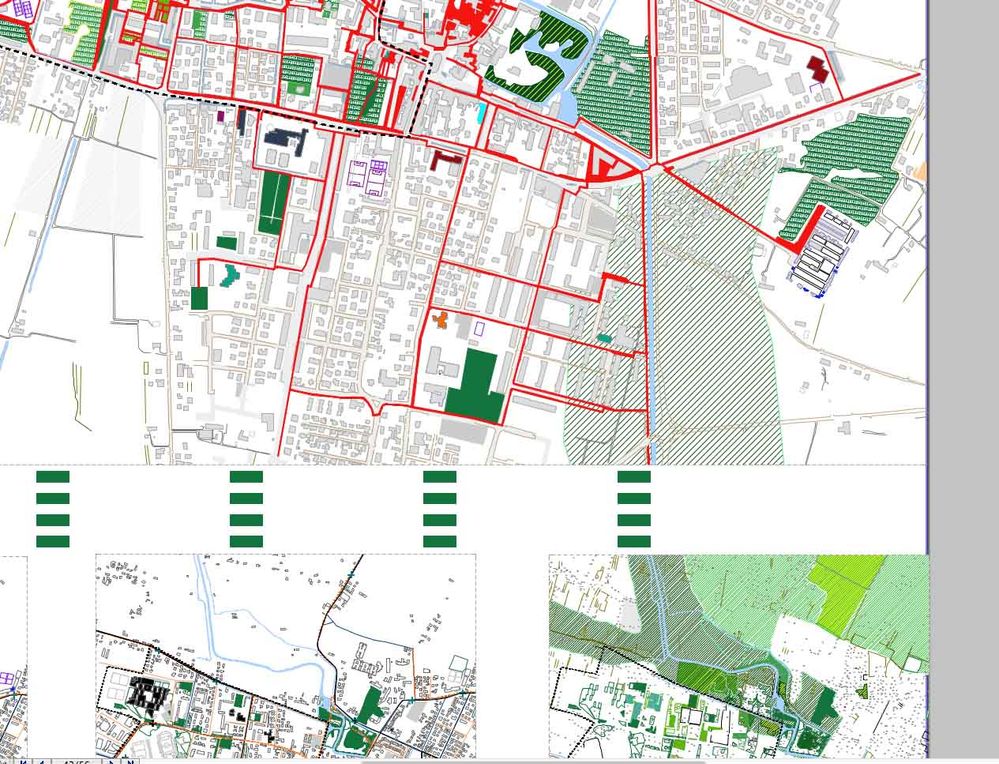

I am using Layout to prepare a drawing for printing and I need to specify the colour coding for each fill. I have drawn rectangles on the layout as the caption and I thought I could change the colour of the rectangular fills by picking the colour directly for the view but I can't. I can only if I explode the view but I don't want at the moment, as I will have to work on it later. Is there a way I can access the view fills from the layout?

thank for your help,
Pao

AC26 EDU • WIN 10 • Intel Core i7 2.8 GHz• 32G RAM• NVidia GForce GTX 1080
2 REPLIES 2
Erwin Edel
Rockstar
Why not place a visual legend as a saved view? You can exclude it from any scale autotexts. Use an unlinked worksheet for it.
Erwin Edel, Project Lead, Leloup Architecten
www.leloup.nl

ArchiCAD 9-26NED FULL
Windows 10 Pro
Adobe Design Premium CS5
Paopao
Booster
Erwin wrote:
Why not place a visual legend as a saved view? You can exclude it from any scale autotexts. Use an unlinked worksheet for it.
Thats is a good idea: I will do it the next time. I

have made a list of all the colours and input them one by hand. 😉
