I want to change only the elevation line in the GOC in the section view. Is it possible?

LeeJaeYoung
Virtuoso









AC27 on window 11
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Barry Kelly
Moderator

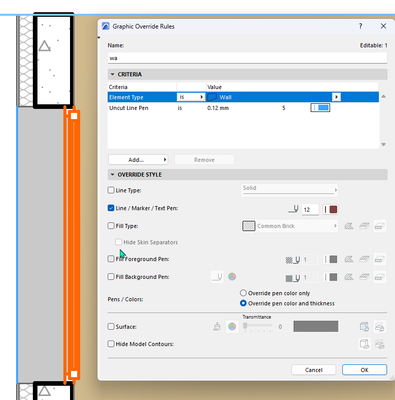

Remember that Graphic Overrides affect the entire element.

So even though you are filtering for walls with a blue uncut line, that will just find all walls that happen to have a blue uncut line.



Any walls that it finds will be completely changed by the overrides you set.

The actual overrides do not differentiate between cut or uncut lines.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

5 REPLIES 5
Solution
Barry Kelly
Moderator

Remember that Graphic Overrides affect the entire element.

So even though you are filtering for walls with a blue uncut line, that will just find all walls that happen to have a blue uncut line.



Any walls that it finds will be completely changed by the overrides you set.

The actual overrides do not differentiate between cut or uncut lines.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11


Yes, your answer makes me give up.
thank you

I'd rather apply it instead of HIde.

AC27 on window 11

Sorry, clarification.

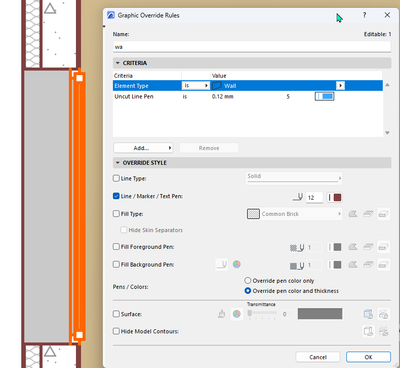

You can 'hide' the uncut and/or cut lines of the element but you can not override the pen colour for uncut/cut lines.

I tend to work in version 22 that doesn't have that option to hide them.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

I guess the translation is not good.
I want to thank you for solving my problems
Instead of the option to hide it, I said that I would like to have an option to apply only the elevation line I wanted.
thank you ^^
I had a lot of questions while studying over the weekend....
I beg you well.

AC27 on window 11

@LeeJaeYoung wrote:

Instead of the option to hide it, I said that I would like to have an option to apply only the elevation line I wanted.
thank you ^^


Yes, I understood that.

I didn't even realise there was an option to hide the lines until you mentioned it, so I just wanted to clarify for others reading this that you could hide the cut/uncut lines (as you discovered) but not change their colour.

Because in my first post I said "The actual overrides do not differentiate between cut or uncut lines".

But they do if you want to hide them.
