Line order is messed up in sections

Ruslan2
Participant

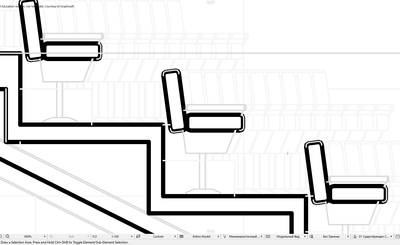

For some reason while in a section view Archicad puts further and thinner lines on top of the main lines that are being cut.




6 REPLIES 6
Barry Kelly
Moderator

Is that a single chair object (if so, is it in the standard library - which one is it)?



Or is it all separate elements?

If separate elements, it may depend on the order in which they were created.

You may have to adjust the display order of each element.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

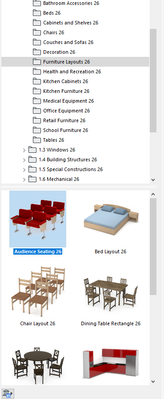

It is in a standard library, the element's called Audience seating. But the actual problem is much worse because you can see stair lines overlapping and manually fixing display order does not help at all.







I am not sure what is happening for you.

When I cut a section through that seating, it all looks fine.




Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Ruslan2
Participant

It feels like it happens when the project gets larger and I guess it just become harder to handle a hierarchy of all the lines for Archicad, because when I started the project from the beginning the problem was gone.

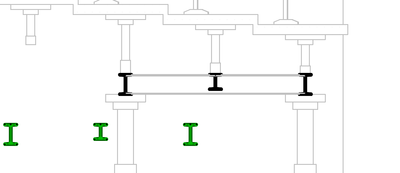

But then later in the same project the same issue started happening again but now it's with happening with beams. Why can't just lines that are cut be over all the other lines?






Ruslan2
Participant

Alright I guess i just found a workaround.

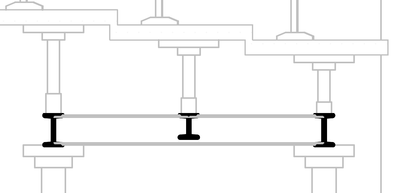

So what i did was i copied the beams that caused the problems. Ruslan2_1-1682946520048.png

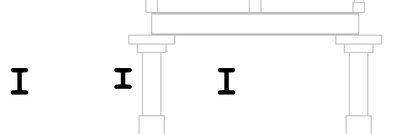

Then i removed the old beams that do not display correctly

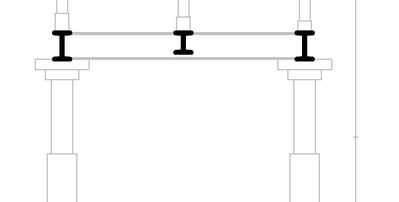

And moved the beams that were copied to the right place.


That solved the problem for me. So I think what's going on is when you copy some object it forces it to be displayed on top of all the other objects and you can't really change its order with this buttons because i tried multiple times and it just didn't work.


But i would really like if archicad did not mess the order of lines every time i copy some object. Can you please look into this issue






@Ruslan2 wrote:

But i would really like if archicad did not mess the order of lines every time i copy some object. Can you please look into this issue


The display order should not get messed up.

Especially for the chair as it is all one object, so display order will have no effect.



Can I look in to it - no sorry.

I don't have a large model such as yours and it may be specific to your file or machine setup.

If you have a Select Agreement or subscription then you can contact your local Archicad support and see what they say.



Otherwise, if anyone else here has any ideas, please share them.
