Need help, All my drawings become blank in my layoutbook?

Jeffrey WU
Contributor

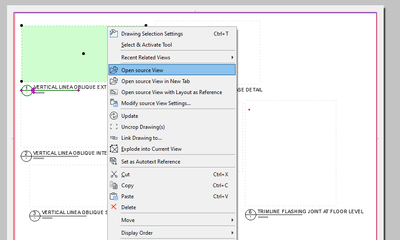

All my details in my layout book become blank after its auto-update, but when I "open-source view",

Screenshot 2022-04-01 111300.png

 I still can see them in view map and worksheet.


The only thing I changed is that I copied another detail from another Cad project to my worksheets.



Many thanks.



6 REPLIES 6
Gerry Leonor
Advisor

they might be cropped out of the drawing view.
temporarily, change one of the drawings from "Manually resized frame" to "Fit Frame to Drawing".

if the drawing jumps Fitted drawing moves away from where it is in the layout, that'll mean the Saved View is in a different location. that's why the Drawing is showing as empty in the layouts.

AC25 | Win10 | 64 bit | 16Gb RAM |Intel i7 8700 @ 3.20Ghz

come join our unofficial Discord server
https://discord.gg/XGHjyvutt8

Thanks for your help.

I tried "Fit Frame to Drawing" and the drawings jump to another place but I am sure I didn't do anything with my worksheet except copy-paste a detail.

I can not repair it at all even if I delate this details.

And I did a test that I copied the same detail to a new project's worksheet and all details become blank again. I have no idea why it happend.

Thanks anyway.

Gerry Leonor
Advisor

maybe i'm just overthinking it -- but in my head i could incorrectly imagine you did this:



  • copy pasted details from an external AC file into a Worksheet in your current file
    saved each detail in their respective Saved Views in your View Map.
  • ALSO copy pasted the Drawings from the Layouts in the external AC file & pasted these Drawings into your active AC Layouts.
  • re-linked these pasted Drawings to read from the newly created Saved Views in your View Map.
  • crap hit the fan.



i highly doubt this happened & i'm definitely overthinking this.


now unless there was an accidental change in scale or an accidental Drag everything in the current view to a different location occured, i can't really think of a reason why the 2D would move away from the cropped view. perhaps the box for "Use Internal Origin" was un-checked? but even then, i doubt that'd make the Drawing jump to a different worksheet cropped space.



in either case, you're going to move them anyway.

AC25 | Win10 | 64 bit | 16Gb RAM |Intel i7 8700 @ 3.20Ghz

come join our unofficial Discord server
https://discord.gg/XGHjyvutt8
Barry Kelly
Moderator

In the View settings, there is a little tick box at the bottom that says to remember zoom and rotation.

That can also affect what you do or don't see when the view is placed on a layout.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Miha_M
Advisor

You have an exclamation mark on your view tab. Check and update your saved view settings. I assume the copied detail messed up some layers and their visibility settings.

| Archicad 4.55 - 27
| HP Z840 | 2× E5-2643 v4 | 64 GB RAM | Quadro M5000 | Windows 10 Pro x64
| HP Z4 G4 | W-2245 | 64 GB RAM | RTX A4000 | Windows 11

Mjules
Mentor

When this happens, the best solution would be to start again and let the layout's drawings to be updated manually.
