walls in 3d showing a line in between
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-04-19 01:47 AM
I mainly did one room and duplicated it many times so i ended up with not a single wall in the same line

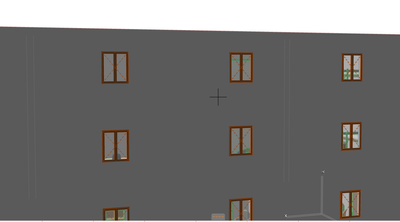

and it shows in the 3d view 2 parralle line in the place where each "wall" stops...
Any help with that please?
And thank u in advance!

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-04-19 02:26 AM
You don't say what version of Archicad you are using.
Is it just an 'illusion' in 3D - i.e. does it disappear when you rotate and zoom?
Do the lines show in elevation?
Is it the same with the vectorial engine and the OpenGL (Hardware Acceleration) engine in the 3D styles?
Barry.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-04-19 03:18 AM
Pretty sure those are cause by the wall junction order. Can you try selecting your interior wall and reducing it's Intersection Priority?
Ling.
AC22-28 AUS 3110 | Help Those Help You - Add a Signature |
Self-taught, bend it till it breaks | Creating a Thread |
Win11 | i9 10850K | 64GB | RX6600 | Win11 | R5 2600 | 16GB | GTX1660 |

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-04-19 06:36 AM
1st question, why did you split the walls instead of using just one straight wall? If you didn't intend it maybe you got a duplicated wall there can try deleting first and see.
ArchiCAD 9 onwards
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-04-19 11:11 AM
They mentioned they did one room then duplicated it, and I am assuming modifications were made to each duplication as to why modules were not used. Skip having to space the windows.
Ling.
AC22-28 AUS 3110 | Help Those Help You - Add a Signature |
Self-taught, bend it till it breaks | Creating a Thread |
Win11 | i9 10850K | 64GB | RX6600 | Win11 | R5 2600 | 16GB | GTX1660 |

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-04-19 11:15 AM
Yes I think you can use a .mod files if it will be a typical layout for units or floor. It will be more productive in terms of having changes in those specific layout in one go.
ArchiCAD 9 onwards
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-04-27 01:51 PM

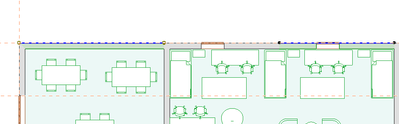

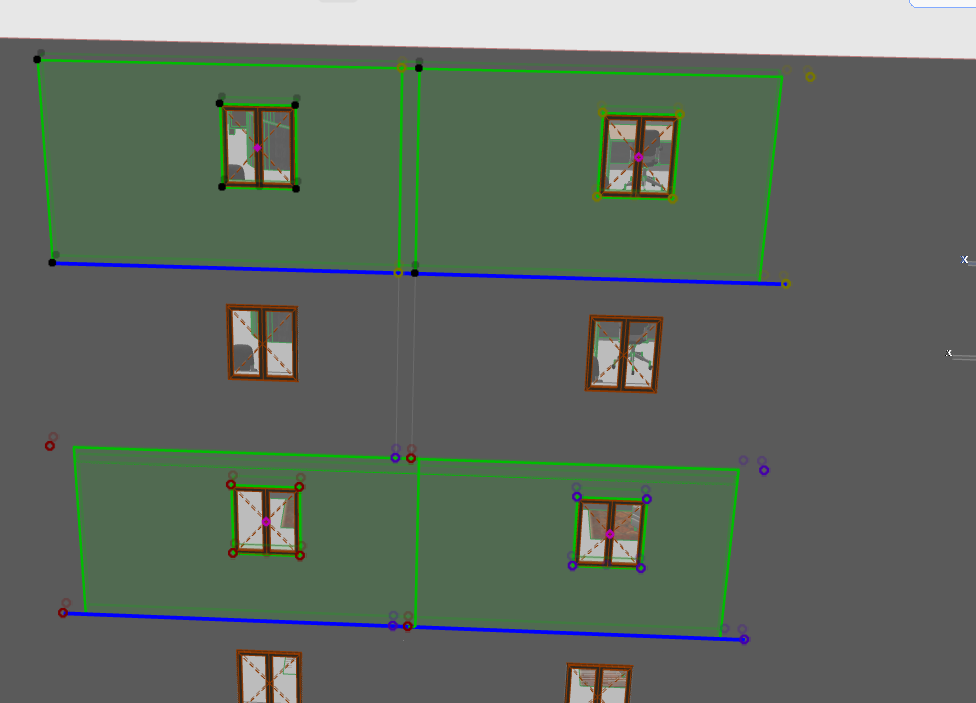

it's Archicad 22 the one on the buttom don't have that problem but the ones at the top do show a double line like the non selected one right under it and it appears from all angles...
(and thanks for the reply)
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-04-27 01:53 PM
if u don't mind me asking, what's an intersection priority? (i searched but didn't quite understand)

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-04-28 03:24 AM
Looks like your walls overlap... instead of terminating at the same point, which your internal wall would also terminate at.
AC22-28 AUS 3110 | Help Those Help You - Add a Signature |
Self-taught, bend it till it breaks | Creating a Thread |
Win11 | i9 10850K | 64GB | RX6600 | Win11 | R5 2600 | 16GB | GTX1660 |
