Gdl object collision avoidance

Bhtsz_pyd
Contributor

Hello friends
I created a precast column with GDL. Archicad sees it as an object, not as a column, because it is made via GDL.
Normally when a column passes through a slab, Archicad creates a gap in the slab according to the order of priority, but when it comes to an object, I have to create all these gaps manually in order not to get a conflict error. Is there any way to automatically cut objects as well?
Sorry, my English is not very good.
Thank you

WhatsApp Image 2024-09-29 at 17.38.41.jpg

7 REPLIES 7
Barry Kelly
Moderator

Objects do not take part in automatic Priority Based Connections.

You must perform a Solid Element Operation.



However that column could be created as a segmented column, and if complex profiles are used for the segments, they can also have profile modifiers that can allow for some on screen adjustments.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Thanks @Barry Kelly

But this is a simple version of column. There's no way I can do this with the column tool. I guess I have to SEO the model every time.

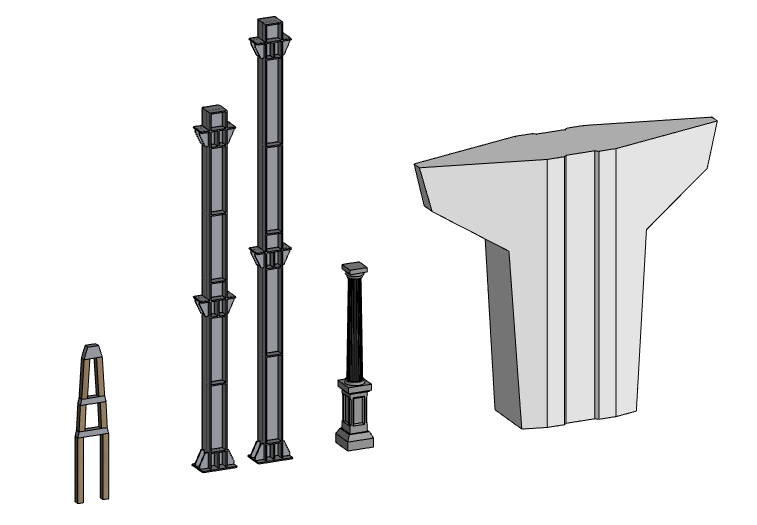

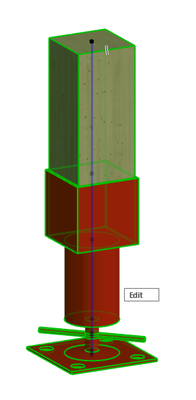

You can do some pretty amazing columns with a segmented column.










Barry.



One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Which version of AC are you using?

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win10 | R5 2600 | 16GB | GTX1660

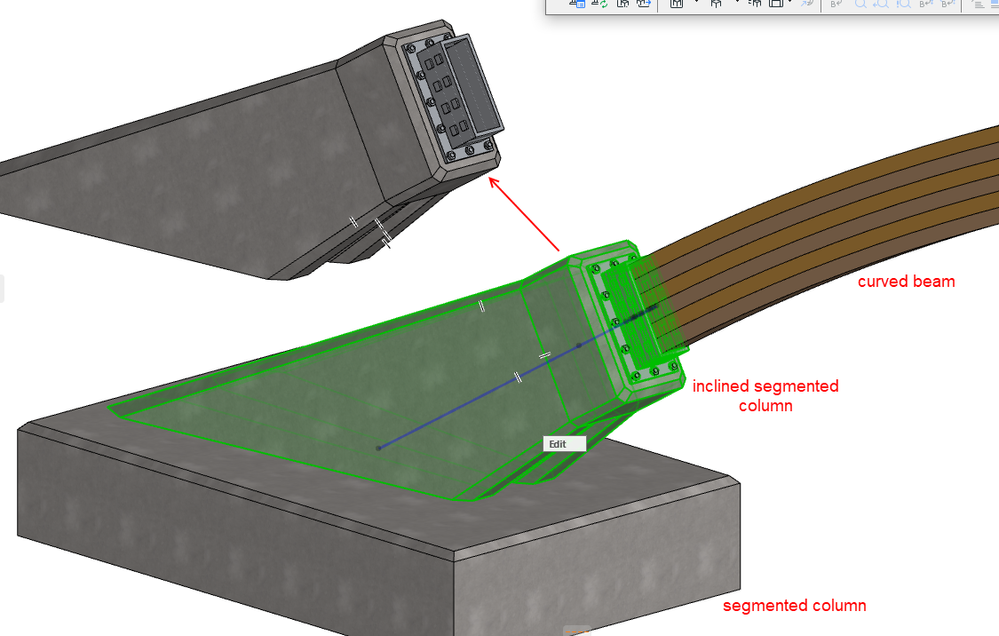

Archicad segmented columns are great, but the real trick of this column is the oblique consoles. Firstly, I tried to do this by creating a custom profile, but I could not find a way to create oblique consoles that are not symmetrical or overlapping at close heights. So I created an object via gdl.


27

That would be difficult, as you would need overlapping segments for the different console heights.

GDL is a good way to go.
