Complex Profile Chamfer

The Seldom Seen Guy
Participant

Hi



I am trying to create a complex profile wall, with a chamfer brick on the top.



I want the chamfer to remain constant no matter the depth or height f the wall, but just cant seem to make this happen.



I have tried offset modifiers for the chamfer depth an height, but have had no luck.



I may be missing something.

Any help would be great.

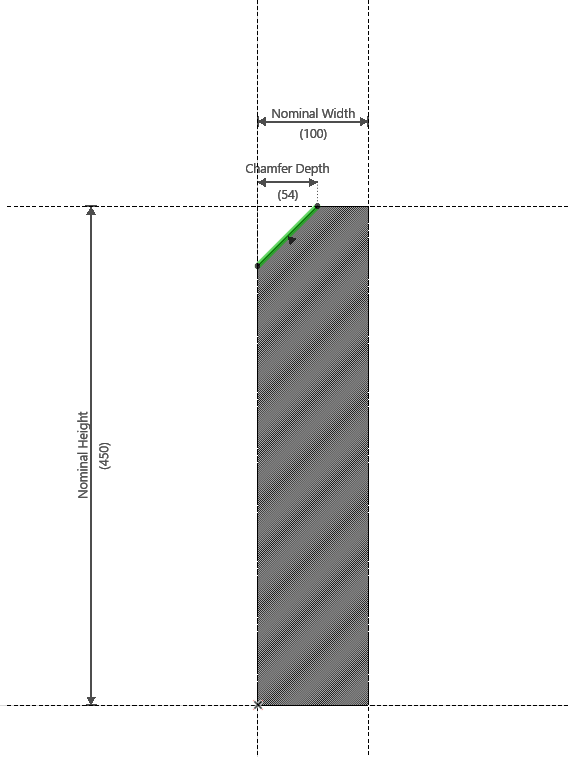

Screenshot 2023-04-18 190255.png
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Jp1138
Expert

I tried to add the width and height strech modifiers, and then move the strech limits leave the chamber out of the the "strechtable" area and it seems to work:






You can see the explanation here:

Archicad 26 Help - Stretch Modifiers



ARCHICAD 27 SPA
Windows 10

View solution in original post

2 REPLIES 2
Solution
Jp1138
Expert

I tried to add the width and height strech modifiers, and then move the strech limits leave the chamber out of the the "strechtable" area and it seems to work:






You can see the explanation here:

Archicad 26 Help - Stretch Modifiers



ARCHICAD 27 SPA
Windows 10

@Jp1138



That is annoyingly so simple!

Ive searched and never found that explanation.



Thank you.
