Window frame incomplete in 2D

VGDD
Contributor

Can anyone please explain why the back face of the window frame that abuts the wall disappears but it doesn't on doors?

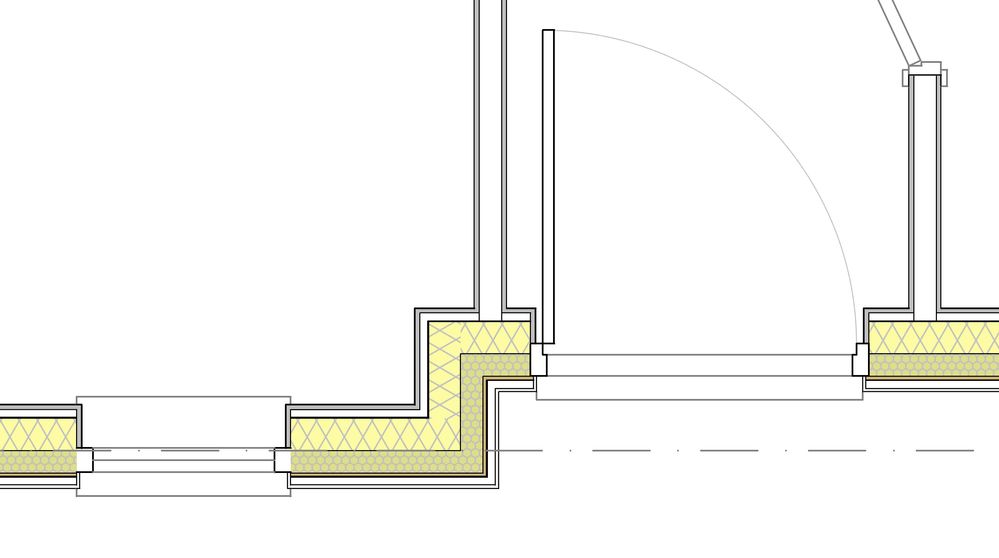

Screenshot window frame and door frame.jpg
Archicad 11 - 27
Windows 11 Home

11th Gen Intel(R) Core(TM) i7-11700K @ 3.60GHz 3.60 GHz
32.0 GB
2 REPLIES 2
Lingwisyer
Guru

I believe it is the gs_frame_[side]_endline boolean parameters which are hidden as far as I know, and are set to 0 unless you have a frame tolerance set for that side...

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win10 | R5 2600 | 16GB | GTX1660

Thank you for your reply Lingwisyer. Frame tolerance is my work around.
