3D Piping Problem

Seiss Wagner
Participant

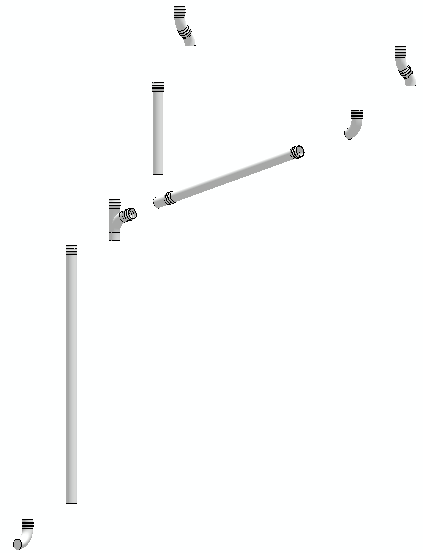

Is there a way to insert and connect the drainage pipes shown in the attachement, using only the ArchiCAD 3D window? And if so, where do I find a tutorial illustrating the techniques required? Or is it possible to explain the technique clearly, on this forum, in the fashion of "3D for Dummies"?

undefined
ArchiCad 21 / OS X 10.13.5 /
iMac 3.2GHz i5 - 32GB /AMD Radeon R9 M390 - 2048 MB/
Dual 5K - 27" Displays
1 REPLY 1
Aaron Bourgoin
Virtuoso
Yeesh.

It would seem that each piece has to be alighed from its base and then elevated a set distance. The pipes - being 'smart' are trained to add flanges as you add length and some of them also can slope. I only had luck by aligning them at their bottoms and then hoisting them up. Without more nodes a working section would appear to be required for verification and adjustment.
