COMPOSITE WALL WILL NO MITER

I created a new composite wall.

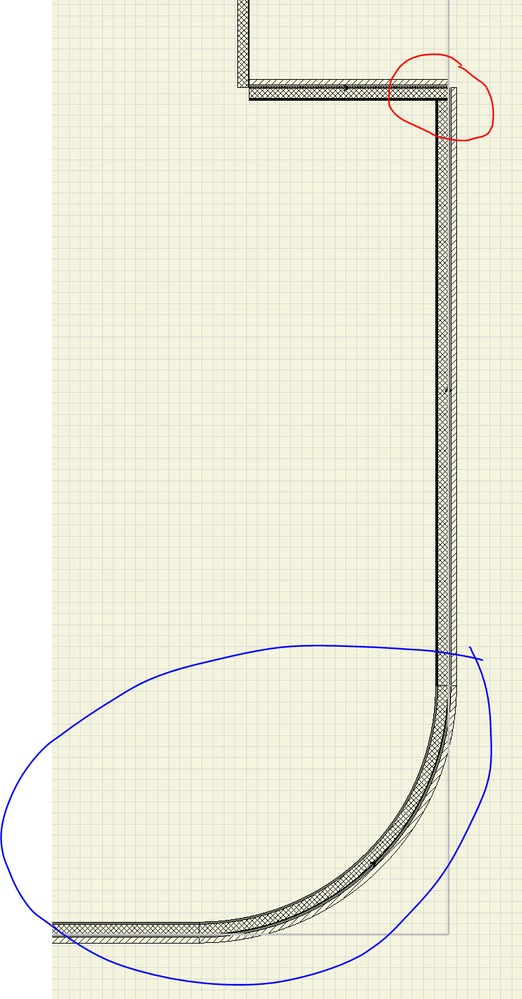

  1. When I try to miter two wall and join.  they do not - they miter to the core line but do not miter.
  2. When I tell it to create a curve it looks correct BUT
    1. There is a line where the curved wall starts and the straight wall begins
  3. V24p1.PNG
Eric Milberger, Architect | Master Planner
1 ACCEPTED SOLUTION

Accepted Solutions
Solution

The problem is straddling 4 different cad packages and not being able to focus on one.

Found the answer -






Eric Milberger, Architect | Master Planner

View solution in original post

3 REPLIES 3
Solution

The problem is straddling 4 different cad packages and not being able to focus on one.

Found the answer -






Eric Milberger, Architect | Master Planner
JKL
Contributor

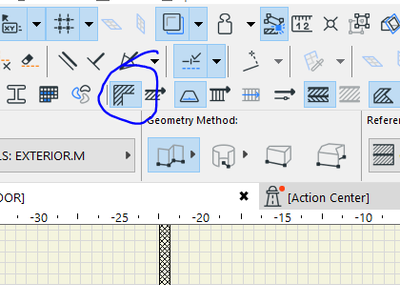

What is the name of that button?

Designer

Mac

Archicad 26

@JKL wrote:

What is the name of that button?





The command can also be found in the VIEW menu.
