Complex profile wall intersection

brianhillestad
Newcomer

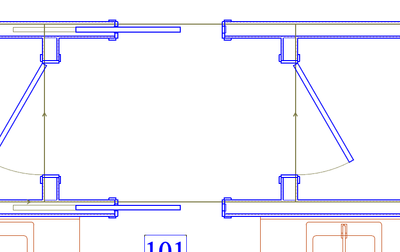

Can anyone help with the cleanup of walls. I have made complex profiles, and I cannot seem to get them to intersect correctly.  I have played with layers, renovation filters, building material intersection priorities.  Working in AC26 on Mac Studio.

Screenshot 2023-06-06 at 12.56.42 PM.png



Screenshot 2023-06-06 at 12.57.16 PM.png



  

Screenshot 2023-06-06 at 2.58.00 PM.png

3 REPLIES 3
Gerry Leonor
Advisor

what building material (BM) are you using for the stud space? it needs to have a higher BM priority than the plasterboard (?) lining for it to be overridden.

AC25 | Win10 | 64 bit | 16Gb RAM |Intel i7 8700 @ 3.20Ghz

come join our unofficial Discord server
https://discord.gg/XGHjyvutt8
Barry Kelly
Moderator

A few things to watch out for.



'Clean wall and beams' option in on-screen options should be ON.

The walls should all be in the same layer and the intersection group number for that layer can not be zero.

If in different layers, the layers all need to have the same intersection group number.

The strength of the building material in the external plaster skins needs to be weaker than the central skins.

You can also adjust the 'Junction Order' of the walls to affect how they trim - especially when 3 walls join at the same point.






Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Lingwisyer
Guru

And the last image, looks as if your reference lines are not intersecting
