Create curved profile

Anonymous
Not applicable
Hello,

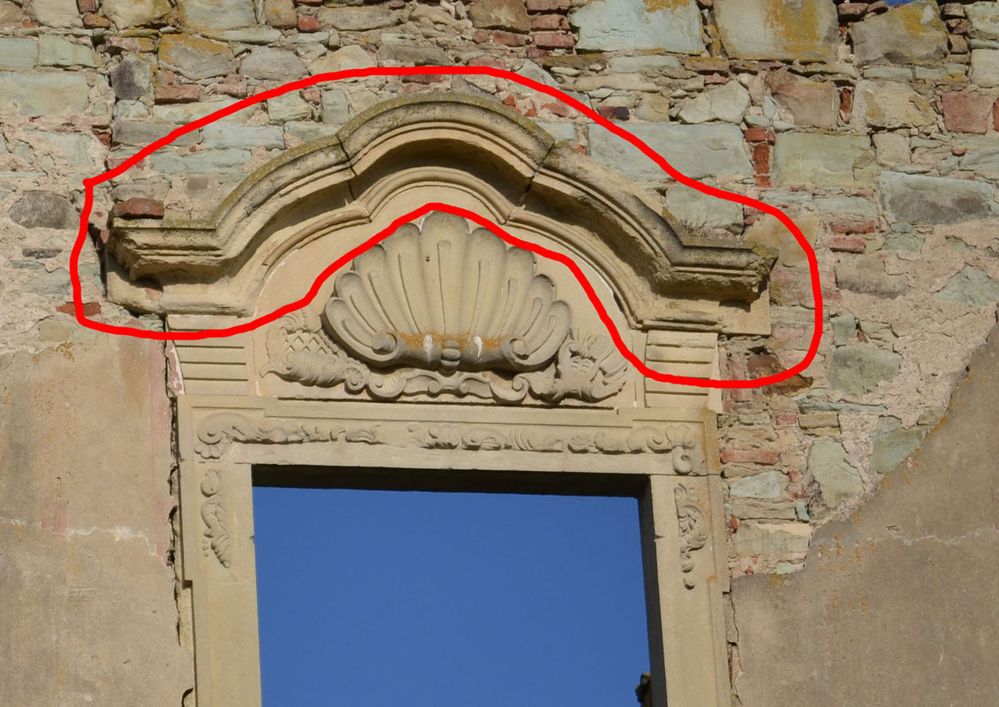

Please tell me how can I create this curved profile?
I am using Archicad 15 & 16.

Thank you!

1 REPLY 1
Barry Kelly
Moderator
You could do it as a complex profile curved wall in plan and the save it as an object, but rotated so it can go over your opening.
Or you could use a rotated shell.
Or now in 16 you could use a rotated Morph and that will give you even more control of the details.
Barry.
One of the forum moderators.
