Curved walls misbehave in 3D (while 2D is ok)


Anyone knows why the walls would behave like this in 3D?

The plan is OK, no problems there. Just the 3D. We have a blobby project and this is happening all over it.


Changing the curvatures of these walls sometimes help. But we don't want to change all the plans.

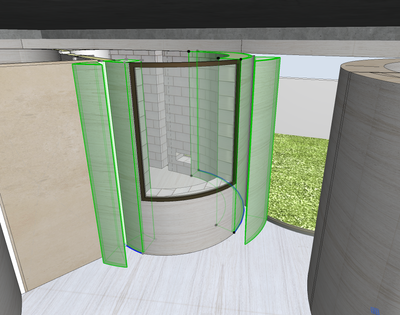

Screenshot 2023-09-25 at 16.45.50.png

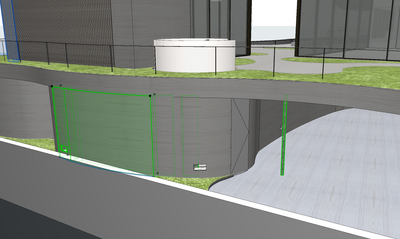

Screenshot 2023-09-27 at 09.17.33.png


Screenshot 2023-09-26 at 12.50.00.png


Screenshot 2023-09-26 at 18.45.08.png


Barry Kelly

How far is your model from the Project Origin?

If it is a long way, this can cause problems.



One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11


Try adjusting the Intersection Priority of your curved walls and those interacting with them. I find this often happens with curved walls not trimming correctly, but can often be corrected by changing the order in which they trim to each other.




AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win10 | R5 2600 | 16GB | GTX1660

All the walls are curved and of the same composite so its can't be that.


If I change these curves it will connect better, seems to be a problem only when the curve isn't smooth. But we can't change the curves.
