Custom Railing Pickets...hubboy
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2015-12-18 07:04 PM - last edited on ‎2023-05-23 06:06 PM by Rubia Torres

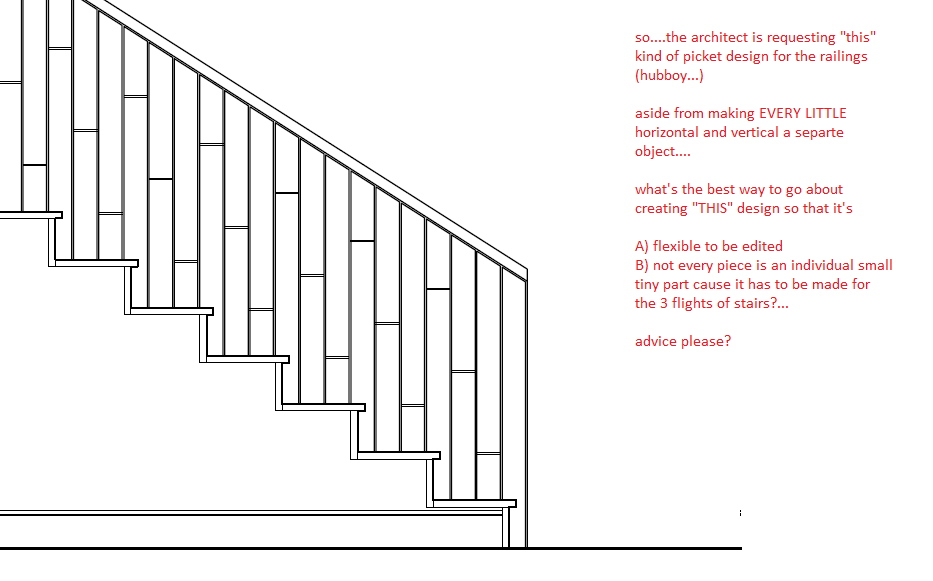

besides making EVERY LITTLE bit and piece of this railing a part of objects...how best to accomplish (see red question).
i>u
Edgewater, FL!
SOFTWARE VERSION:
Archicad 22, Archicad 23
Windows7 -OS, MAC Maverick OS
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2015-12-18 08:26 PM
geeez.....
i>u
Edgewater, FL!
SOFTWARE VERSION:
Archicad 22, Archicad 23
Windows7 -OS, MAC Maverick OS
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2015-12-18 10:05 PM
Just draw it in 2d (elevation) and transform it with truss maker.
It's easy.
Win 10 Pro 64bit
Double XEON 14 CORES (tot 28 physical cores)
32GB RAM - SSD 256GB - Nvidia Quadro K620
Display DELL 25'' 2560x1440
www.almadw.it
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2015-12-18 10:11 PM
please...ellaborate on your steps.
alemanda wrote:
Truss maker is the solution.
Just draw it in 2d (elevation) and transform it with truss maker.
It's easy.
i>u
Edgewater, FL!
SOFTWARE VERSION:
Archicad 22, Archicad 23
Windows7 -OS, MAC Maverick OS
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2015-12-19 02:11 AM
https://www.youtube.com/watch?v=-GA4Ye2rgK0
The only limitation is that it is not adjustable on the fly.
Enjoy!
Win 10 Pro 64bit
Double XEON 14 CORES (tot 28 physical cores)
32GB RAM - SSD 256GB - Nvidia Quadro K620
Display DELL 25'' 2560x1440
www.almadw.it
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2015-12-19 02:45 AM
I guess you are then taking the approach to create a "truss" for the stair railing in angle?
Thing is...that then I'd have to determine the exact "midpoints" of the vertical pickets and the horizontal members so that I when I create the "truss" to be used as a "stair railing" it'll offset the proper amount.
So, if my steel picket members are say 1/4" thick, then the linework that is used to create the truss needs to be inboard by 1/8" in order for the truss to expand outward properly?
Yeah...and the non-parametrics on the fly don't help.
i>u
Edgewater, FL!
SOFTWARE VERSION:
Archicad 22, Archicad 23
Windows7 -OS, MAC Maverick OS
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2015-12-19 01:28 PM
Win10 64bit Intel i7 6700 3.40 Ghz, 32 Gb RAM, GeForce RTX 3070
AC 27.0 (4001 INT FULL)
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2018-06-02 08:28 PM
I'm trying to create a CUSTOM RAIL (Balluster or panel) in AC21. It's a repeated pattern as shown below. First I thought I'd just draw this as a PROFILE and the Balluster will display this at a regular interval... But the profiles extrude UP and not FACE ON... ugh...
So dug deeper and see that you can call up SUB COMPONENTS for RAIL PANELS... ok... I'll just create some slabbies and save as a RAIL COMPONENT... Wait... there is no RAIL COMPONENT Save as? Looking the the MANUAL... I see that your supposed to do that with MORPHS... ok.. I make them a MORPH... But once again... there is no SAVE STAIR COMPONENT option. The manual clearly shows it available but it's on a WINDOWS platform... Is this NOT available for MAC?
Then, I presume that if I just create an old style OBJECT, I can just redefine it's SUBTYPE and I'm golden... but yet again... there are several RAIL RAILING options for subtypes, but NONE make it show up for the railing tool...
Any advise welcome...
Visual Frontiers
AC25 :|: AC26 :|: AC27
:|: Enscape3.4:|:TwinMotion
DellXPS 4.7ghz i7:|: 8gb GPU 1070ti / Alienware M18 Laptop
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2018-06-02 09:02 PM
Now what I'm seeing is that the FACE of the rail is set to the reference line, which puts it HALF A RAIL THK off center... Tried to just make an adjustment in the MOTIF obj... but no matter where I "MOVE" it to... it always thinks the FACE is 0...
I know this is alway USER ERROR for me... so be kind!
Just using the OFFSET CENTERLINE shifts the entire railing off the centerline... not just the motif
Visual Frontiers
AC25 :|: AC26 :|: AC27
:|: Enscape3.4:|:TwinMotion
DellXPS 4.7ghz i7:|: 8gb GPU 1070ti / Alienware M18 Laptop
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2018-06-02 09:26 PM
I found the HORIZ. OFFSET in the railing settings...
Good for now... Lots more to learn
Visual Frontiers
AC25 :|: AC26 :|: AC27
:|: Enscape3.4:|:TwinMotion
DellXPS 4.7ghz i7:|: 8gb GPU 1070ti / Alienware M18 Laptop
