Door View in Curtain Wall

Anonymous · ‎2014-03-19

Dear allL

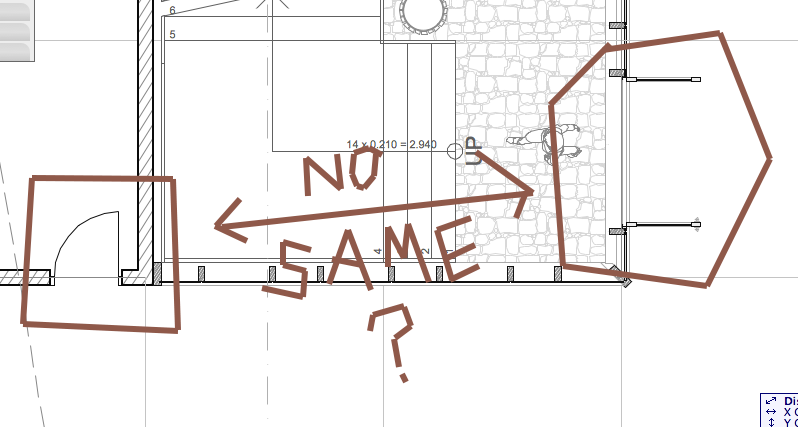

How come the door in Curtain wall see different from the door in Wall?
(See Screencap)

Anyone can help ,

please thanks!

Screen Shot 2014-03-19 at 5.45.18 pm.png

Anonymous · ‎2014-03-19

HELP me !

Laszlo Nagy · ‎2014-03-19

In the Floor Plan and Section panel of the Curtain Wall Settings Dialog, what is the Floor Plan Display field set to? Is it set to Symbolic? Or Projected? Symbolic should give you the representation you need. Try to experiment with that field.

Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27

Anonymous · ‎2014-03-19

Thanx! it works!
