Help with getting walls, windows, doors to show 2nd story

Anonymous
Not applicable
Hi, I am still a beginner with ArchiCad, and I am completing a midterm for a 2 story residential home. All my walls, windows, and doors show up fine on the first floor plan. However, on my second story I can only get the walls and furniture I added to show. The walls, which are from the 1st story do not show unless the trace reference is turned on from the 1st story. Windows and doors I added to the 2nd story are not visible at all in floor plan view, however can be seen in 3d view. Any help is appreciated thanks in advance!

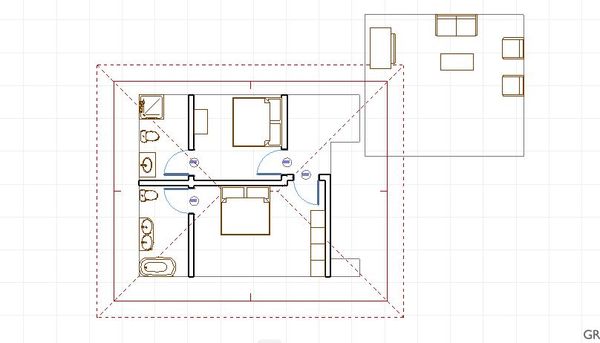

help 1.JPG

2 REPLIES 2
Eduardo Rolon
Moderator
Just to check if it is something simple:
• Select walls in 1st floor or 3d.
• Open the settings and under "Floor Plan and Section"
• click on 'Show on stories" and change from "Home Story Only" to "All Relevant Stories"
Eduardo Rolón AIA NCARB
AC28 US/INT -> AC08

Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator

Anonymous
Not applicable
You were absolutely right! Thank you so much!
