Hexagonal grid

‎2012-03-14 08:32 AM
Is it possible to have a skewed grid in Archicad? Like a Frank Lloyd Wright hexagonal grid?
Mac OS 26.1 | AC 29.0.2 INT 3200 FULL
Labels:
0 Likes
4 Replies 4
Anonymous
Not applicable

‎2012-03-14 02:03 PM

‎2012-03-14 02:03 PM

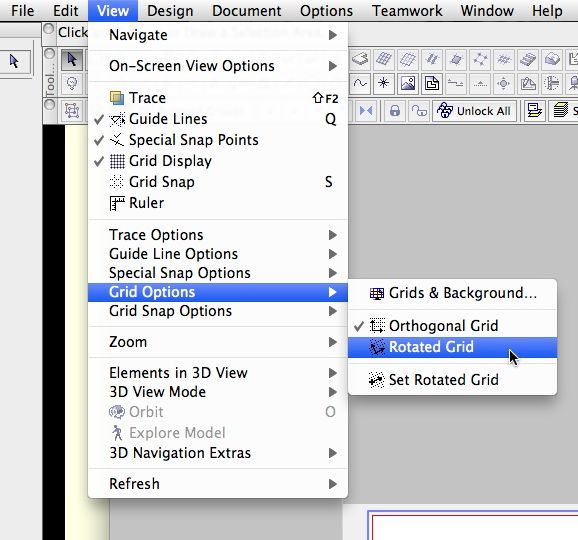

You can have a rotated grid. Not sure about a "Hexagonal" grid...
0 Likes
Laszlo Nagy
Community Admin
Community Admin

‎2012-03-14 02:37 PM

‎2012-03-14 02:37 PM
No hexagonal grid or a grid where the two axes are not at 90 degrees.
If I had this situation I would probably write a GDL Object to achieve that.
Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac29
0 Likes
Achille Pavlidis
Advocate

‎2012-03-15 08:44 AM

‎2012-03-15 08:44 AM
OK thanks, Laszlo
Mac OS 26.1 | AC 29.0.2 INT 3200 FULL
0 Likes
David Maudlin
Rockstar

‎2012-03-15 01:35 PM

‎2012-03-15 01:35 PM
Or set out a series of lines, then lock them (or put them on a locked layer). The cursor will respond to the lines' intersections.

David
David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC29 USA Perpetual • Mac mini M4 Pro OSX15 | 64 gb ram • MacBook Pro M3 Pro OSX14 | 36 gb ram
0 Likes
