How can I recognize columns as boundaries?

LeeJaeYoung
Virtuoso

Practicing beams and slabs.

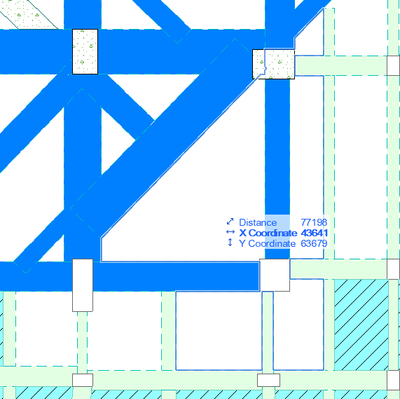

When creating a slab, I press space to automatically find the boundary, but it doesn't seem to recognize the column.
How can I recognize columns as boundaries?



스크린샷 2023-09-13 111617.png

AC27 on window 11
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Barry Kelly
Moderator

You can't.



You need the walls to be continuous through the column (the column will cut the wall if the building materials are stronger).

But still it will magic wand to the walls and ignore the column.



Or add lines around the columns.



Or manually place the slab.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

3 REPLIES 3
Solution
Barry Kelly
Moderator

You can't.



You need the walls to be continuous through the column (the column will cut the wall if the building materials are stronger).

But still it will magic wand to the walls and ignore the column.



Or add lines around the columns.



Or manually place the slab.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

It's a beam, not a wall.
This means that the beam must also be continuous.
In my opinion, it's hard to understand why columns are excluded when finding slab boundaries.
It seems to be archiCAD's mistake. ^^

AC27 on window 11

@LeeJaeYoung wrote:

It's a beam, not a wall.
This means that the beam must also be continuous.
In my opinion, it's hard to understand why columns are excluded when finding slab boundaries.
It seems to be archiCAD's mistake. ^^


Yes the beams must be continuous then.



Columns do not have a horizontal reference line like walls and beams, and it seems the perimeter of the column is ignored - I don't know why.

Probably just because they are not a linear element.

So there is noting to magic wand to.



Barry.
