How to customise a stair in AC - Help



Hi dear community,

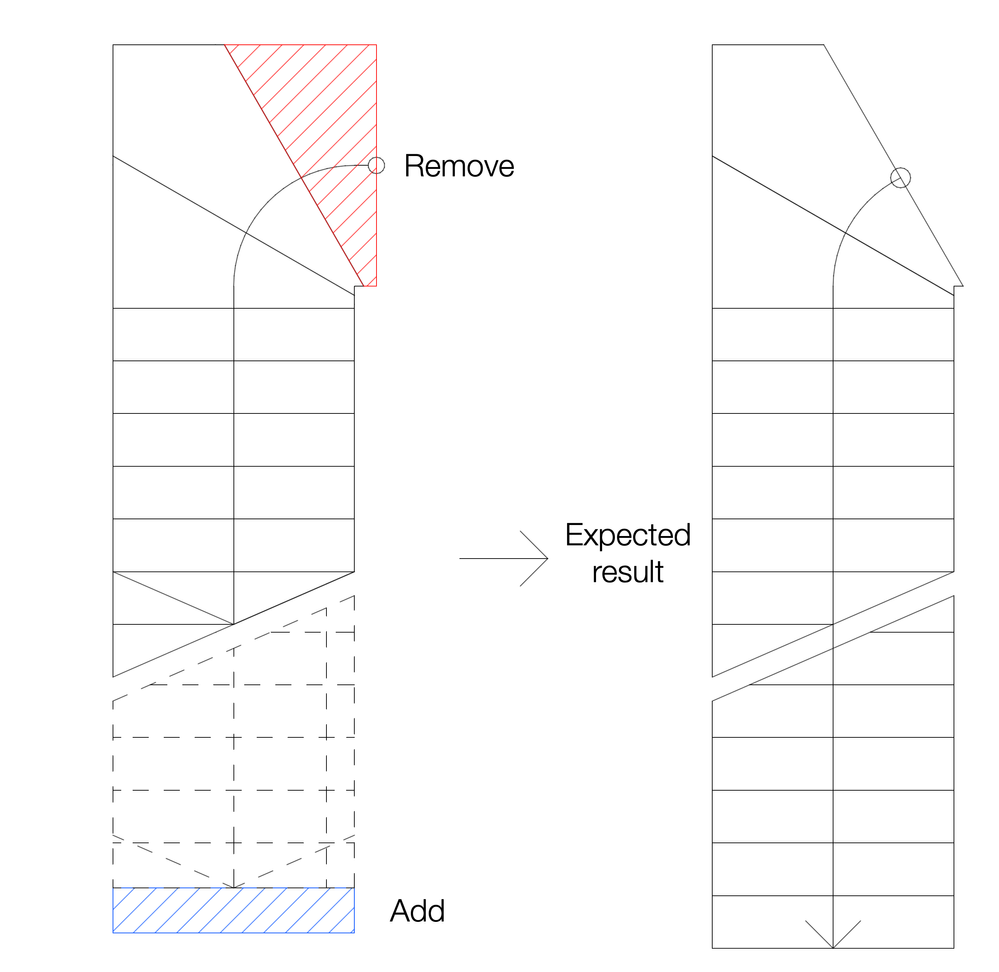

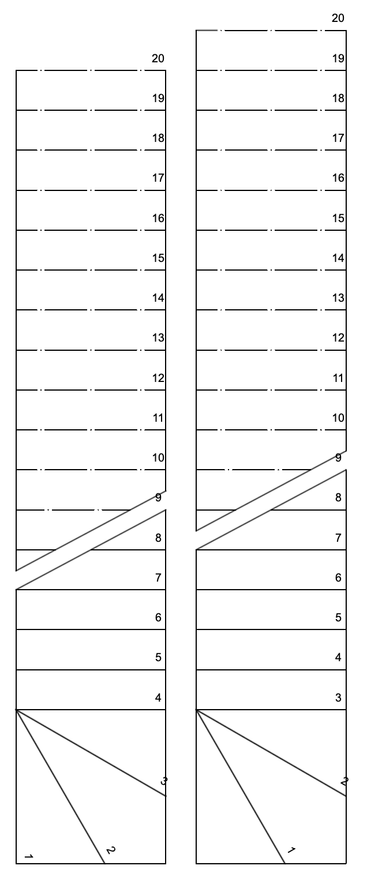

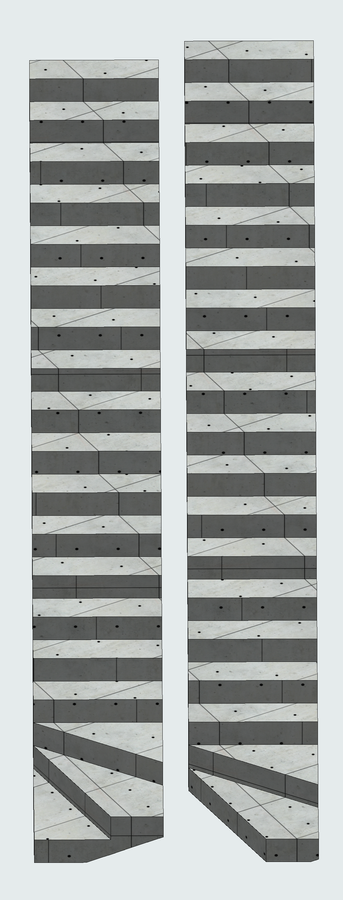

I am currently working on a personalised staircase and would appreciate some help, as I am struggling to achieve the design shown in the attached picture. I have created an illustration using Archicad to explain what I am aiming for.

Any assistance or insights would be greatly appreciated.

Best regards,Screenshot 2024-06-18 at 09.59.39.png



Operating system used: Mac Intel-based Ventura

3 REPLIES 3
cuba
Advocate

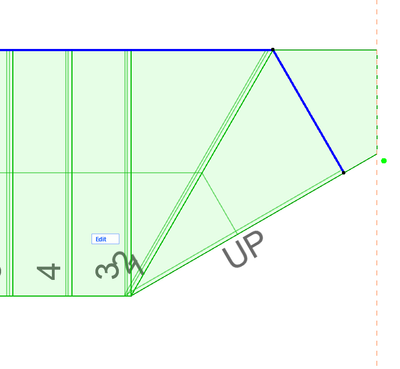

It is possible to start with a tread, this adds a step and shifts the numbering but the 2d representation is not as you want it...



start with tread.png






There used to be a function to create a stair based on a fill but I cannot find it anymore: "Create Stair Using Selection"

https://help.graphisoft.com/AC/20/INT/AC20Help/03_1_Elements_Virtual_Building/03_1_Elements_Virtual_...



Apple M1 Max 32 GB Ventura
AC27
