How to model horizontal cable railings and wall‑mounted handrails with the Railing tool

[#1]

A precisely modeled railing improves both safety and the visual quality of the project. The Railing tool offers extensive customization to suit a variety of design needs, but its flexibility can make setup complex. This article presents practical strategies and clear tutorials for creating horizontal cable railings and wall-mounted handrails with brackets, to achieve accurate, efficient models.

Issue description

When configuring a railing, several settings must be adjusted (rails, posts, panels, and fixings) and fit it to nearby building elements, which can make achieving the desired look and performance slow and difficult without a clear method.

 

Solution

Before we get started: remember to ‘Favorite’

Favorites are used to save and apply frequently used Railing settings configurations.

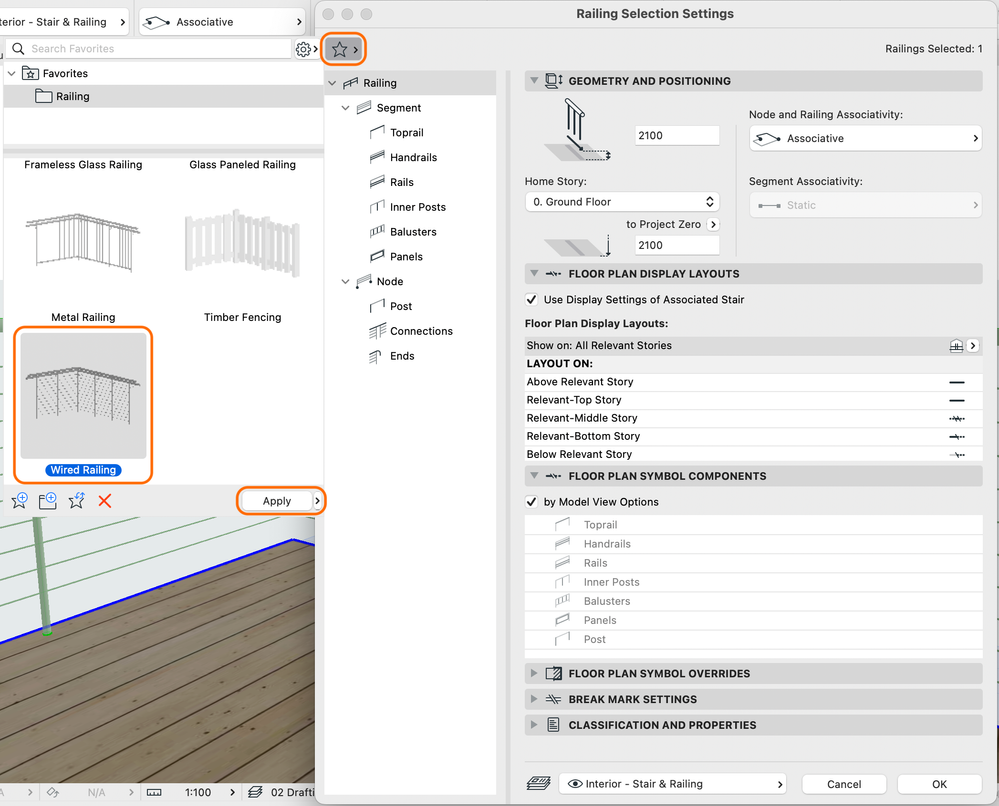

Favorites are stored in the project file and can be imported or exported between projects. They can be accessed and applied directly from the Railing Default Settings dialog:

Saving an empty railing as a Favorite is recommended for quick setup when starting new models.

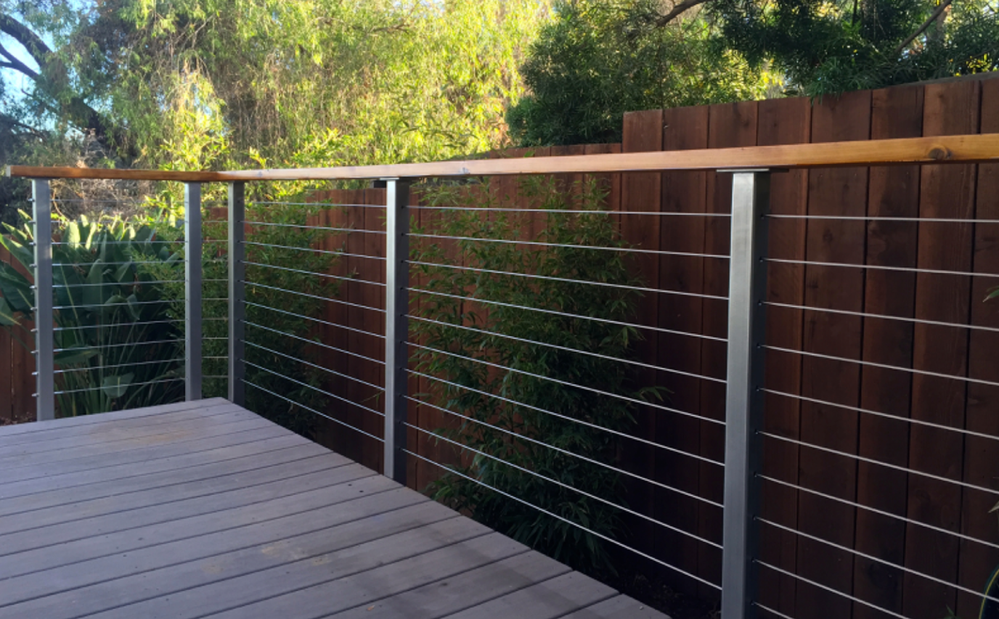

Railing A: horizontal cable runs

1. In the International template, the Favorite “Wired Railing” can be used as a starting point.

2. Set the height of each cable element, adjust the thickness, profile, and material accordingly.

3. Likewise, set Inner Posts for intermediate spacing – dimensions, profile, material, etc. When the Equally Distribute Pattern (max. length) option is enabled in the Segment settings, the optimal spacing of the intermediate posts can be defined.

4. Set the end posts for corners. Ends settings can also be adjusted to control how far beyond the last post the Toprail projects.




5. Adjust the fixing of the Toprail.

6. To achieve a realistic detail in the corners, set up Connections for the rails.

7. Finally, adjust the position and height of the whole railing and fixing solution at the bottom:

Railing B: wall mounted handrail with brackets

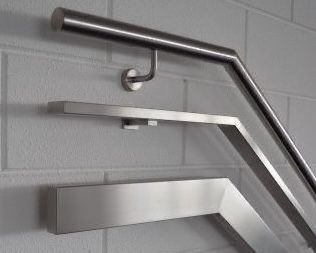

Source: https://br.pinterest.com/pin/1618549861730713/

.

1. For such cases, a Handrail with wall fixing is used.

2. The fixing distribution settings can be customized in a dedicated tab. In this example, the railing does not contain any posts, therefore we should use either the distribution by number of divisions or by pattern (pre-defined distance).

The outcome

When these methods are applied, highly detailed, construction‑ready railings can be created that integrate seamlessly with project models. Using Favorites accelerates the workflow and maintains consistency, while the step‑by‑step configuration of horizontal cable railings and wall‑mounted handrails provides precise control over every component. These strategies minimize unnecessary detailing and rework, resulting in professional, efficient modeling outcomes.

Railing A: horizontal cable runs

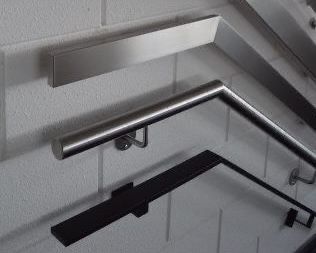

Railing B: wall mounted handrail with brackets

---

These techniques were originally shared by Community members @AllanP and @Lingwisyer through nice step-by-step tutorials, and additional insights from @MitchD and our moderator @Barry Kelly. If you’d like to explore the original discussion, click here to read the full thread!

This article is part of the ‘Tip of the Month’ series on Graphisoft Insights, highlighting valuable community-driven solutions for modeling challenges. Try these methods in your next project and experience the difference in model quality and efficiency.
