Modifying Mesh Terrain
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-03-23
07:18 PM
- last edited on
2023-05-23
04:56 PM
by
Rubia Torres
2009-03-23
07:18 PM

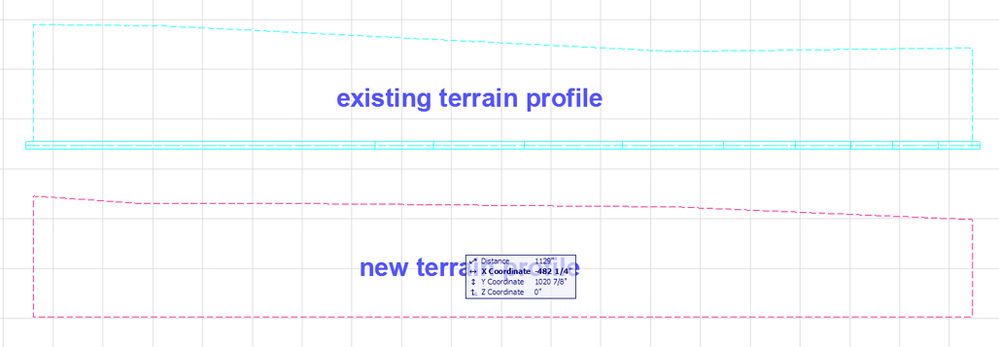

I've attached a polyline trace of a site mesh object that shows it's profile. Grades need to be adjusted to match the second profile. Does anyone have experience with this? What is the best method?
3 REPLIES 3
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-03-24 10:14 AM
2009-03-24
10:14 AM
plan view> select the mesh you want to modify> activate mesh tool> click to add points/ contours as required. ref manual: page 258

Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-03-24 05:38 PM
2009-03-24
05:38 PM
Lindsay,
Don't forget to keep a copy of the original site on a layer
site.existing
Make a copy of this site and put it on a layer
site.new
(layer names are just to be clear, use your own nomenclature)
This allows you to:
- do volumetric comparisons for cut/fill calculations
- restart the new site if you mess up or change your mind about the design....
Don't forget to keep a copy of the original site on a layer
site.existing
Make a copy of this site and put it on a layer
site.new
(layer names are just to be clear, use your own nomenclature)
This allows you to:
- do volumetric comparisons for cut/fill calculations
- restart the new site if you mess up or change your mind about the design....
Erika
Architect, Consultant
MacBook Pro Retina, 15-inch Yosemite 2.8 GHz Intel Core i7 16 GB 1600 MHz DDR3
Mac OSX 10.11.1
AC5-18
Onuma System
"Implementing Successful Building Information Modeling"
Architect, Consultant
MacBook Pro Retina, 15-inch Yosemite 2.8 GHz Intel Core i7 16 GB 1600 MHz DDR3
Mac OSX 10.11.1
AC5-18
Onuma System
"Implementing Successful Building Information Modeling"
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-03-24 06:28 PM
2009-03-24
06:28 PM
Check out this link. Has a lot of information and a link to an Australian site that has a tip which shows how to manipulate meshes.
