Morph tool issue

Milan
Booster

Hello,

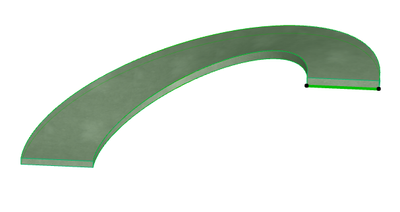

We have issues with new Archicad 27 Morphtool. Which was not present in previous versions, or we maybe missing something out. Is about classical curved ramp type/shape which is impossible to make. I try to do the slab/wall/mesh as ring and then convert it into morph. As should be logical, i try to pull down one edge, to make it with slope, but shoile thing gets deformed. Outwards and upwards... Is some weird organic shape, not a ramp anymore...

Any idea what it could be?

Thanks!



Operating system used: Windows

8 REPLIES 8
Barry Kelly
Moderator

Nothing new about the morph tool in 27.

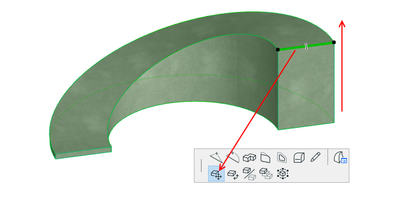

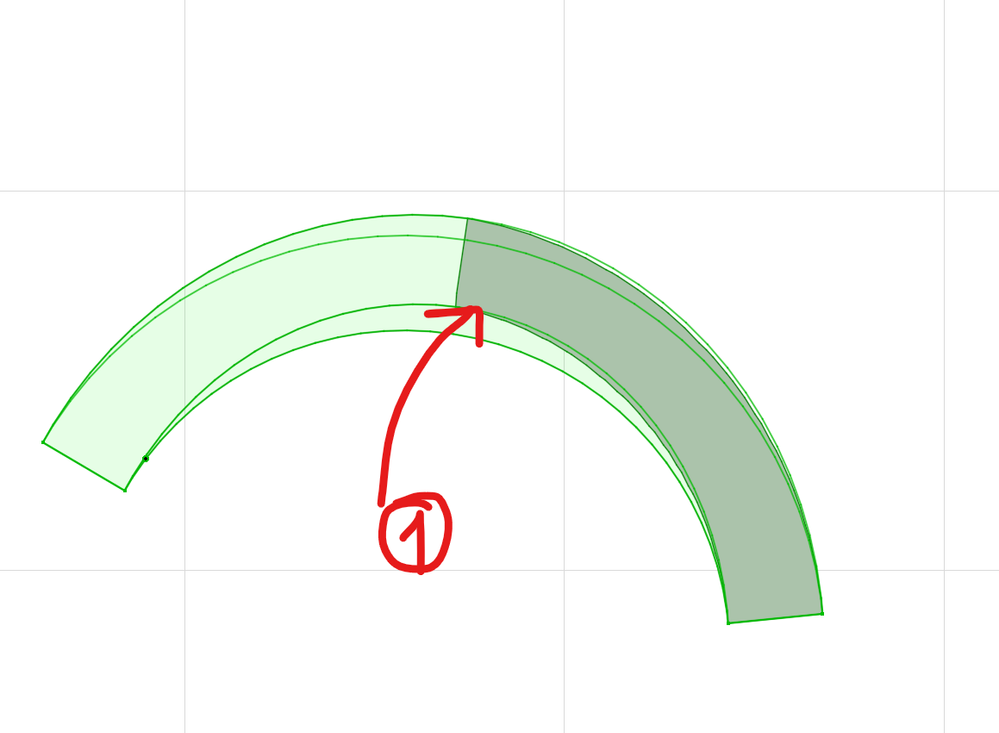

Select just one edge of the morph (sub-element selection) and drag it.







Do the same for the bottom edge if you want.






Or you can select the entire face and move it in one go.






Or there could be a ramp object in the library?



Barry.





One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Hi Barry,

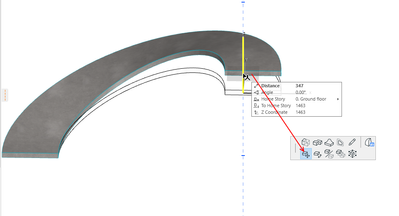

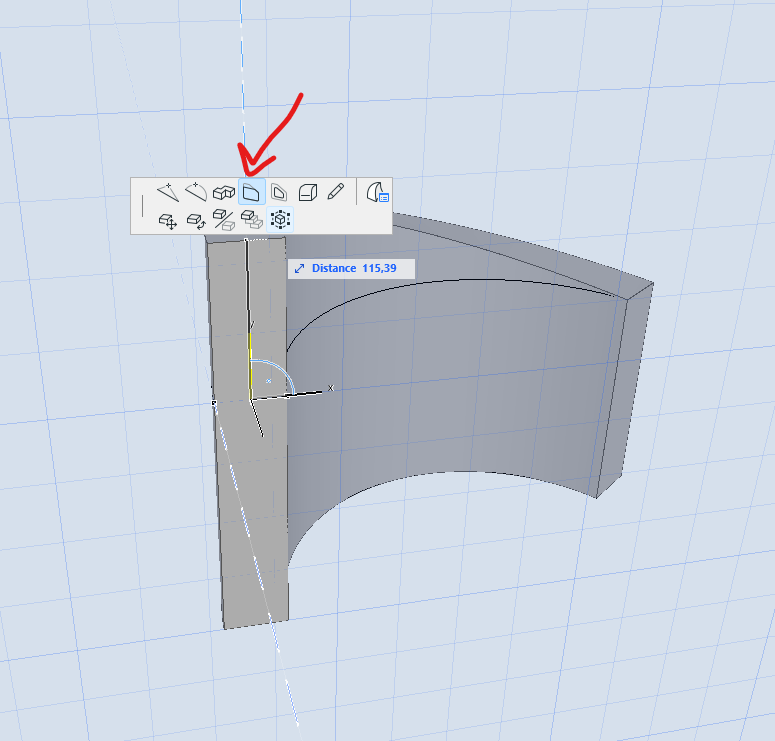

Thanks for the reply, but Im afraid that may not work. The icon you have selected is used to move the object, not the edge, and indeed, if I select move node or edge, it deformes the object completely. Is not just about ramb, we use this tool to model furniture. Please, look at my screenshots!

Thanks,

Milan Snimak ekrana 2024-04-10 094303.pngSnimak ekrana 2024-04-10 094532.png


@Milan wrote:

The icon you have selected is used to move the object, not the edge


I am selecting the sub-element of the morph and I am selecting just that edge (line).

That is why I can drag it.

I am not selecting the polygon surface and extending the edge.

I guess you can do that too, but also move the bottom edge.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

ah, so is a sub-element selection. Not sure how that works, but will try!

Thanks!



Milan

Sub-element selection worked out but still have distortion!

Thanks however




Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

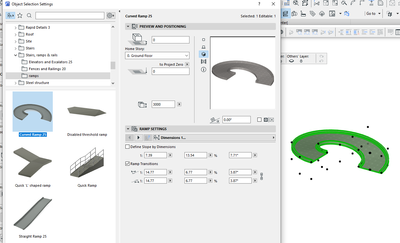

Have you tried the curved ramp object?






This is my library so you will have to search for it.

I think it is in structural elements in the default library?



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Yeah, we have this, ramps are working perfectly. But I used ramp to best describe the surface we need. Actually is furniture piece, cabinet , curved wall that is falling down!

But thanks anyway!



Cheers!

Milan
