Site Plan and Section Problem

Anonymous
Not applicable
Hi ArchiCAD experts,
I'm having trouble with two different problems.
The first problem I have is I don't know how to create a site plan. I know it give you option to create a floor plan that shows the model of the building, but I want to create a site plan that shows the overall model with the mesh topo I recreated. How do I achieve that?

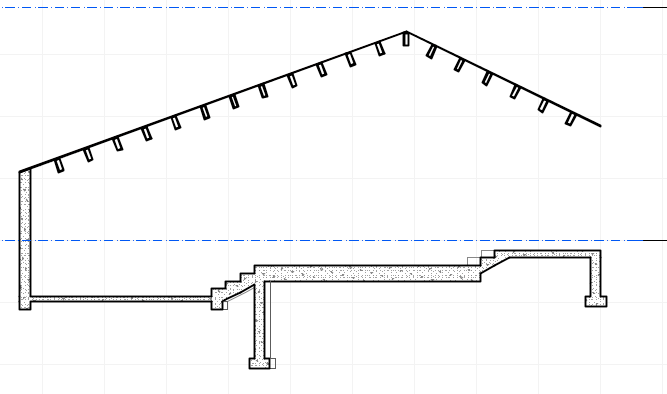

Another problem I have is I have created beams in my model, but when I go to my section view, the beams disappear and it doesn't show up. The section line doesn't cut through the beam (it runs parallel to it) but it should still appear in the background, what is the problem and how do I fix it so I can see it in my section again?

Thanks!
