Stairs and railings

Dali_
Contributor

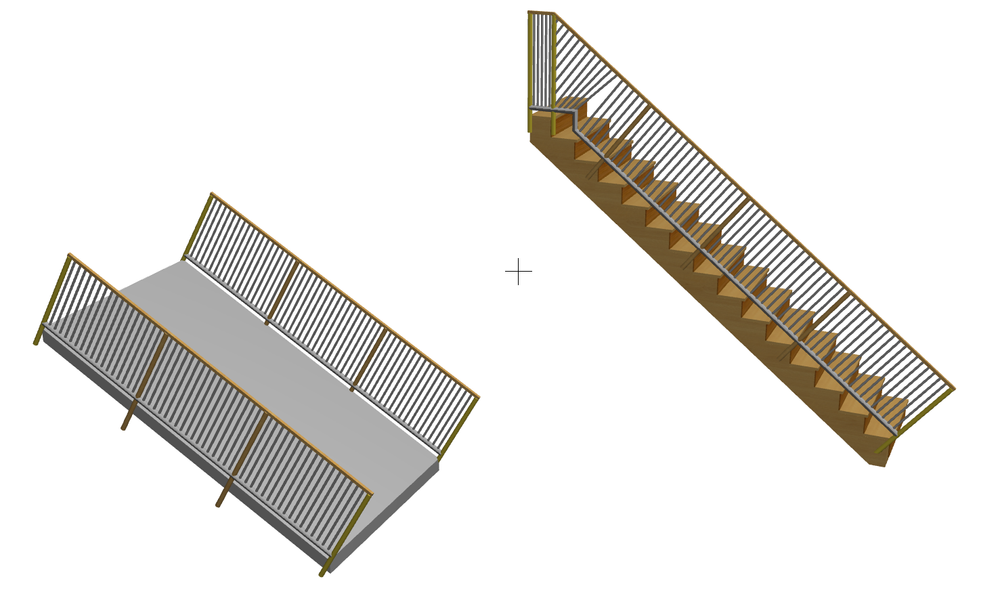

HI.  Whenever I add an 'Associative' railing to a staircase the railing reuses to be vertical. On the horizontal landing the railing and balustrades are perfectly vertical, but, on the sloping stairs the rail balustrades lean at an angle ('skewed') – not vertical.



I cannot seem to find any setting alter this strange behaviour.  If I use the 'Magic Wand' tool, this to produces the same effect.  I am using AC 24.  Does anyone know how to correct this, make the balustrades vertical?


Screenshot 2022-02-20 at 12.49.11.png
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Laszlo Nagy
Community Admin
Community Admin

Did you set the Segment Skewing field properly?


Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27

View solution in original post

3 REPLIES 3
Solution
Laszlo Nagy
Community Admin
Community Admin

Did you set the Segment Skewing field properly?


Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27

Hi Laszio.  You are obviously very intuitive; in the 'Segments' section it was set to 'Perpendicular'.  I changed it to 'Vertical', and problem solved.  Many thanks.

Laszlo Nagy
Community Admin
Community Admin

I am glad it was a simple solution and not a bug. 😉
