Trigonometric Circle in ArchiCAD

Martin Jules
Mentor

I am trying to understand how the trigonometric circle works in ArchiCAD:

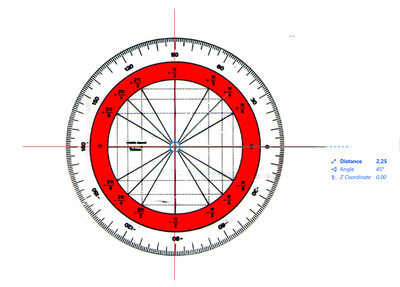

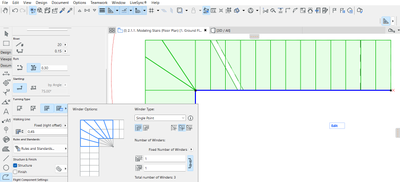

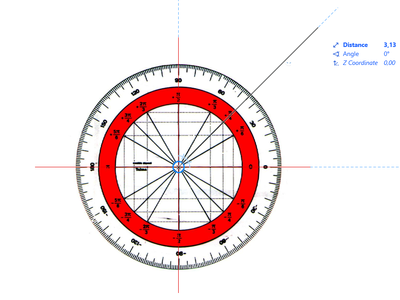

Where I should have had 0° in the quadrant, I have 45° in ArchiCAD, and where I should have had 45° in the quadrant, I have 0° in ArchiCAD. I would like to check if certain calculation methods used in ArchiCAD comply with those required in my jurisdiction. Winders for example:

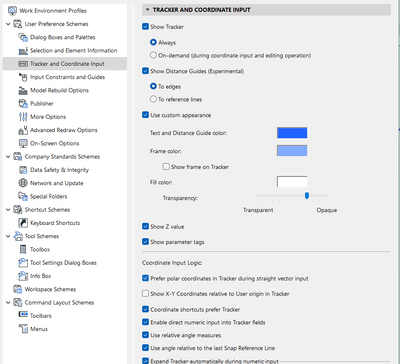

Could someone help me with the polar coordinates in ArchiCAD? It seems they don't follow the trigonometric quadrant:






Martin Luther Jules
AC 10-28 (Full)
Asus | 64 GB RAM | Windows 11
