Unclean Wall Junctions

Not applicable

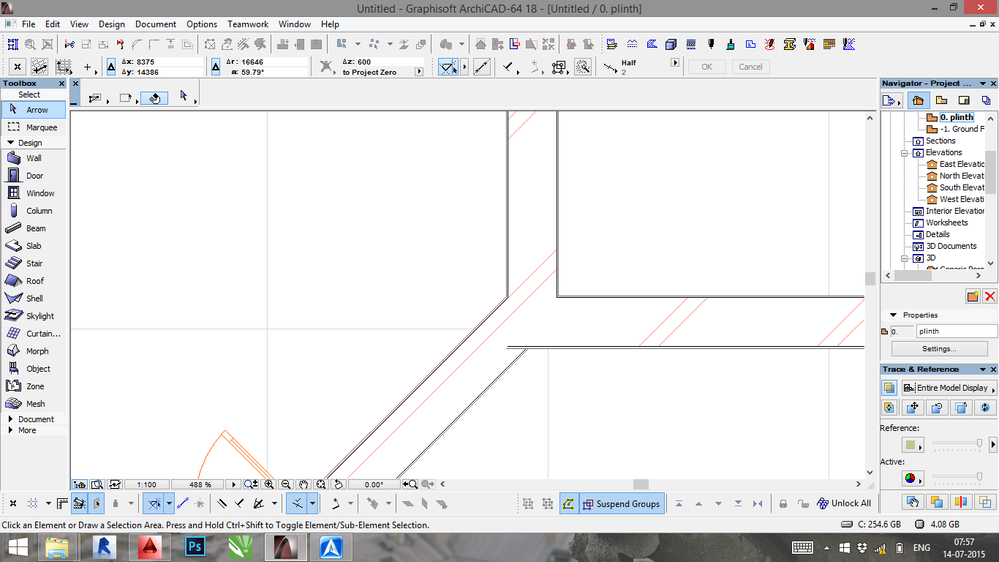

So I was drafting this bungalow in Archicad the other day and found that Archicad could not clean up this junction automatically. Although it seems that it tried to but it is still not how it should be. The wall is a composite and the priorities are correctly set. Is this a glitch in the software or am I going wrong with some settings.

Screenshot (71).png

Gerald Hoffman
Some of these intersections can be tricky and some you may not be able to fix correctly but have you tried changing the reference edge to the opposite side for one to two of the walls or perhaps all off them to the centre position?

"The simplification of anything is always sensational" GKC
AC 25-4013 USA, CadImage Tools
2019 MacBook Pro 16" w/ AMD Radeon Pro 5600M GPU
OS X 11.6
2.4 Ghz 8 core i9, 64 GB RAM
27" LG 5K Monitor

David Maudlin

In addition to Gerald's suggestion, you can try changing the Junction Order of the individual walls.
