Wall Reference Line is offset 1/2" on all walls when it's Outside or Inside Face

architect
Enthusiast

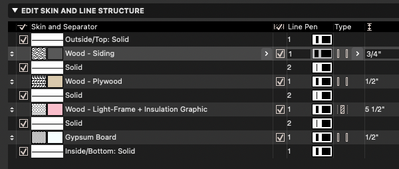

Here are some screenshots illustrating the problem:




2 REPLIES 2
Lee Hankins
Virtuoso

You need to change the active edge offset to 0. Look in the info palette at the top worth the wall selected or open the wall preferences and you will see it there.

Lee Hankins
ArchiCAD 4.5 - Archicad 29
macOS Tahoe (26.0)
Jp1138
Advisor

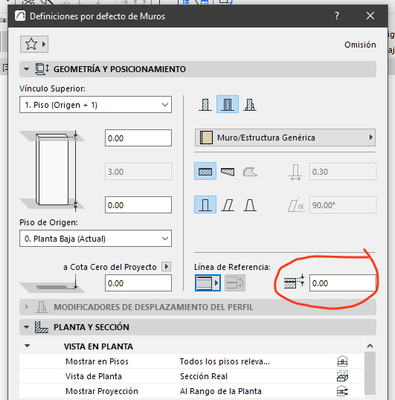

As Lee says, maybe you have entered a displacement to the reference line:






ARCHICAD 28 SPA
Windows 10
