Modeling
About Archicad's design tools, element connections, modeling concepts, etc.

caterpillar roof

Anonymous
Not applicable

‎2008-07-23 01:56 PM - last edited on ‎2023-05-23 03:09 PM by Graphisoft

dear all,

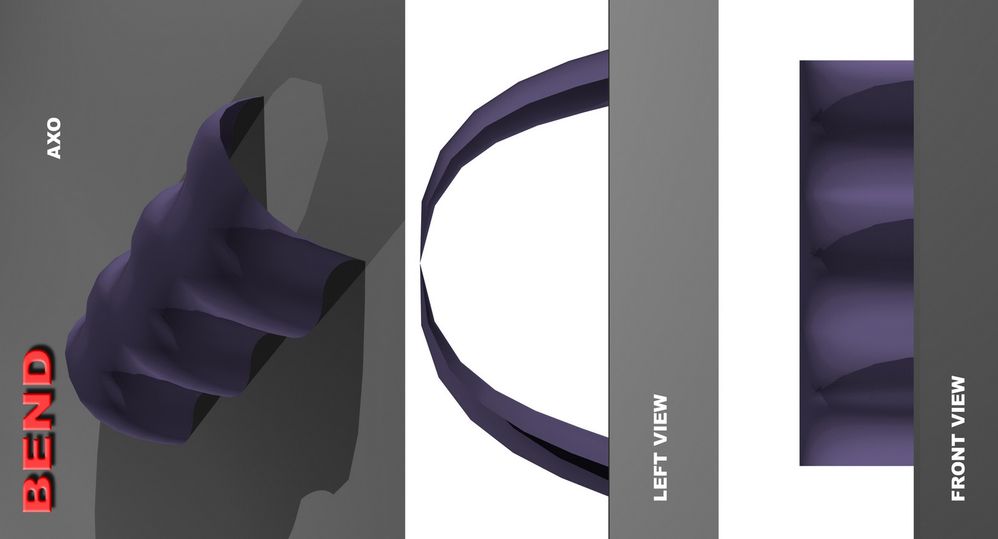

can anyone help me by suggesting how i can go about building the attached roof in archicad. see images below.
the flat version is the first stage of my model in MAX. then this was bent to the final form.
Please note that the wave shape on either end of the roof is different.

Many many thanks in advance.

PS: As we can only attach one image per post. i will try to attach the 2nd image to the reply of this post.
Preview file
143 KB
Labels:
0 Likes
2 REPLIES 2
Anonymous
Not applicable

‎2008-07-23 01:58 PM

see initial flat version of roof before bending...
Preview file
128 KB
0 Likes
Anonymous
Not applicable

‎2008-07-23 02:49 PM

I am afraid this form could not be modelled in AC. The freedom of modelling you have in Max is far beyond the AC modelling capabilities! Perhaps some GDL guru could script it but this is not what I call "modelling".

I suggest you to import the Max model into AC as 3ds - thus you could use AC for generating floor plans and sections.
0 Likes
