mirrored complex profile not displaying

Not applicable
i have modeled a complex profile, hotlinked it into the project and cut a section. one side displays the section (wall) correctly while the exact same wall profile (mirrored) does not display correctly (profile line is missing) - tried injecting with the good display side - nothing. can anyone explain what is happening?

undefined
6 REPLIES 6
Not applicable
UPdate:

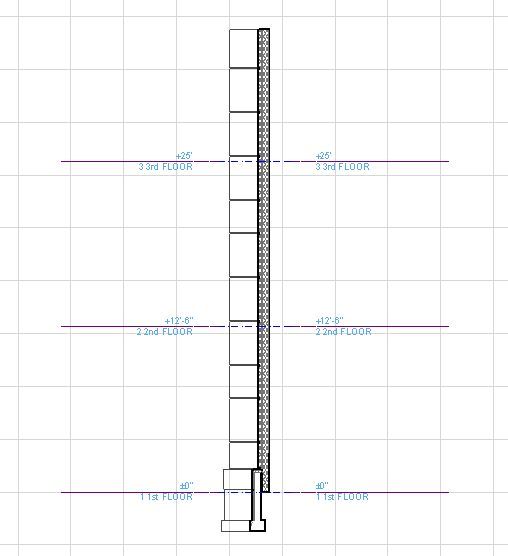

i checked on the module i am hotlinking and when i cut a setion one direction the wall profiles show up and when i cut a section the other direction, they disappear????

anyone have a thought?
undefined
Not applicable

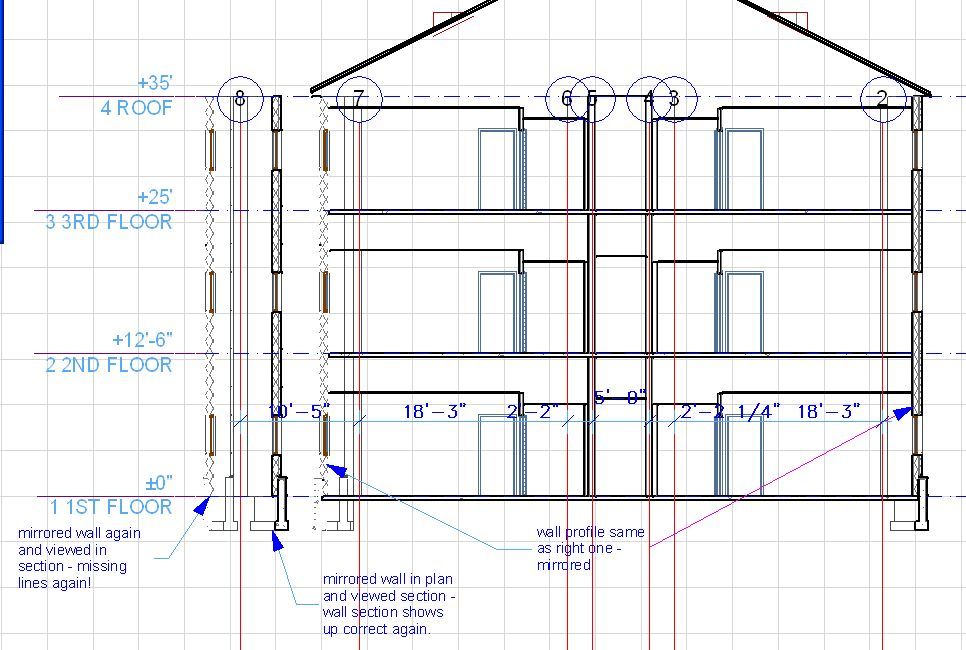

updated - section looking other direction on wall
Not applicable
here is the plan view showing section bubbles
Jere
Expert
I've had the same issues with complex profiles and have never found a fix unfortunately. I ended up just drawing 2d lines over top.
ArchiCAD 26; Windows 11; Intel i7-10700KF; 64GB RAM, GeForce GTX 3060
Jere
Expert
Here's the thread I started on the same topic:

http://archicad-talk.graphisoft.com/viewtopic.php?t=21214

It won't help, but at least it's nice to know I'm not the only one with that problem.
ArchiCAD 26; Windows 11; Intel i7-10700KF; 64GB RAM, GeForce GTX 3060
Not applicable
there was a mention of over-lapping walls, but no mention of layers.

check & see if there are walls of different layers but in the same location.

this is simply fixed by changing the intersection properties in the layer settings...
