Llian
Advocate

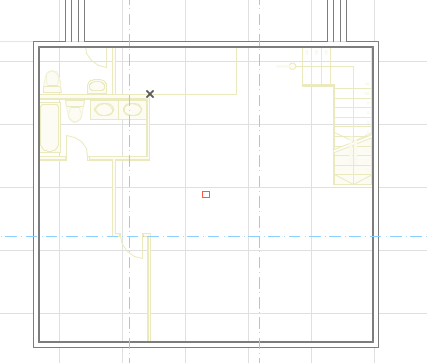

here is the picture of the basement floor plan. the trace is on and it shows the stairs from above down to this basement. why is the stairs not showing ? I have checked my section and it the stairs is correctly located from above leading to basement.

undefined
Lilian Seow LEED AP | cSBA | CAPM | PMP
AC28 USA | Windows 11 Enterprise i5 3.10GHz | Archicad-user since 1994!
5 REPLIES 5
Barry Kelly
Moderator
Have you set the properties of the stair object to "Show on home storey and one storey below"?
Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Llian
Advocate

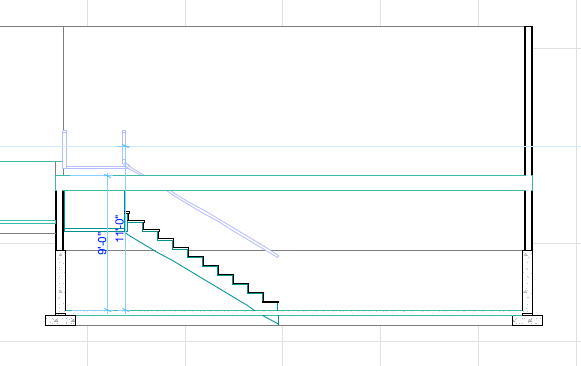

here the section showing the stairs going down to basement. the basement plan is not showing. i also attached the floor cut plane. any help???
undefined
Lilian Seow LEED AP | cSBA | CAPM | PMP
AC28 USA | Windows 11 Enterprise i5 3.10GHz | Archicad-user since 1994!
Llian
Advocate
my floor cut plane settings.....
Lilian Seow LEED AP | cSBA | CAPM | PMP
AC28 USA | Windows 11 Enterprise i5 3.10GHz | Archicad-user since 1994!
Llian
Advocate
i have set to all levels but it's not showing the riser and treads??
Lilian Seow LEED AP | cSBA | CAPM | PMP
AC28 USA | Windows 11 Enterprise i5 3.10GHz | Archicad-user since 1994!
Not applicable
Try selecting the object and looking for a setting called '2d detail level'. Set this to 'scale sensitive'.

Also check the ' 2d above home storey' settings are all checked.
