Simple - placing a CMU wall in Archicad 28

The CMU wall for the plan is WRONG -

The CMU should be crosshatched.

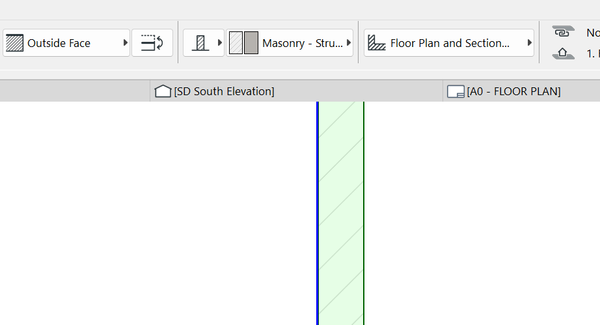

As delivered, the wall shows as brick.

(Hint.  CMU is crosshatched.) Why are the basic elements not correct






Operating system used: Windows 28

Eric Milberger, Architect | Master Planner
4 REPLIES 4

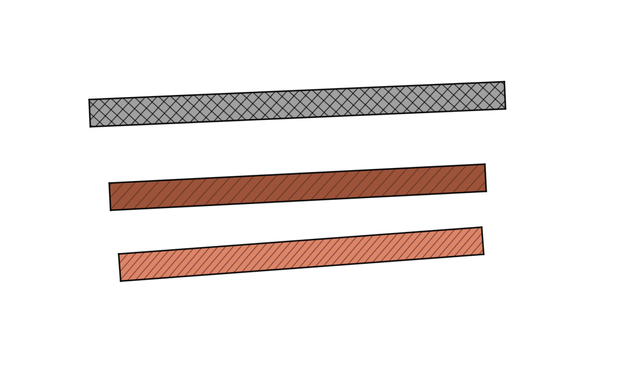

Here is what we have in our template for a CMU  and Structural Brick and Brick Veneer

Need to add CMU with solid filled core

CMU version with each for split-faced Block

Then some thick dots to show the centerline for rebar



The "old school"  reality was to make it so that someone with a first-grade education could see what they were building.




Eric Milberger, Architect | Master Planner

I just opened the INT-template in AC28 and it does look like it's crosshatched as per default.

In your first screenshot - is there a Renovation Filter or Graphic Override that messes things up?






Erik Bjornhage : SwedishChef, ETTELVA Arkitekter, Gothenburg, Sweden
Architect : Digital Development : Graphisoft Cert. BIM-Manager
ETTELVA Arkitekter : Eriks LinkedIn
DELL Precision 5570; i7-12700H; 64 GB; RTX A2000 [8GB] : AC12 - future

In 28.  It is hatched not crosshatched a brick must be hatched only.   28 is also incorrect on brick

Eric Milberger, Architect | Master Planner

That might just be like that in the USA default template, or maybe your own default template.

I am assuming you would have your own template rather than using the default GS one?

Just change it in your template and the problem is solved.

Your template should be set up exactly as you want it, don't rely on some default from GS (or anyone else).
