Is there a way to convert this file into an AC object (3d) ...

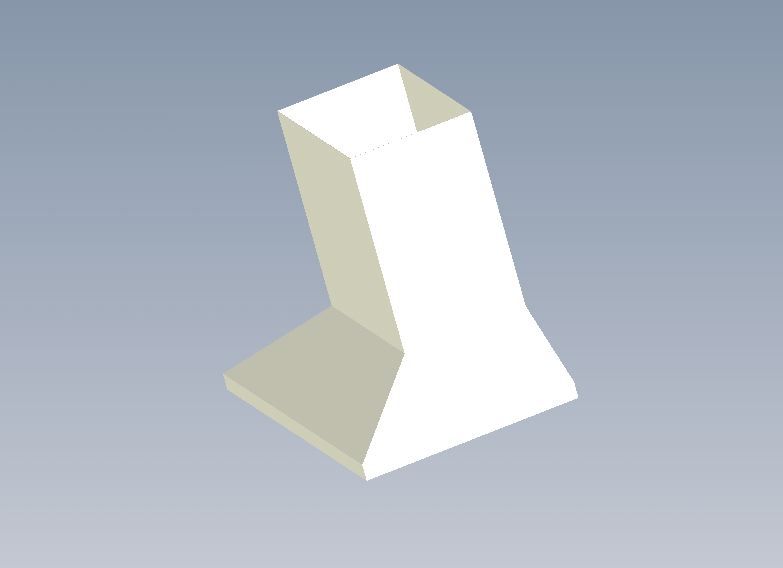

it's saved as a .dwg but has 3d data. I opened it in SolidWorks eDrawings to verify that the 3d exist (It does, I'll attach a screenshot of it). I tried opening it in various ways in AC 11 but no success.
It's not that big of a deal but I was just wondering if its possible using nothing but ArchiCAD. I'll attach the .dwg file on the next post.
@Thomas: Thanks for trying.
@Erika: Yup, I ended up using that object. Thanks.
I never knew that .dwg files can contain 3d data, I was always under the impression that the file had to be a .dxf in order to carry 3d info.
Depending on how often these type of files are used... it might be worth giving AC the capacity to import such data. But if its not widely used or is eventually going to be superseded with newer standards then forget about it.
junior wrote: I never knew that .dwg files can contain 3d data, I was always under the impression that the file had to be a .dxf in order to carry 3d info.
Depending on how often these type of files are used... it might be worth giving AC the capacity to import such data.
Archicad has that capability. And has had it for quite some time.
Normally, if you open a 3D dwg using the Open Object command, Archicad will import the 3D info. (In AC12, you may even get some 3D data if you just Open, but I haven't been able to find out what exactly works that way).
So I think there is either a problem with this specific file, or a bug in Archicad's DWG importer that prevents Archicad from building the object. I don't get 2D grapics either, although AC reports that the GDL scripts are OK. Someone from GS should look into it, now that you've posted the file.
laszlonagy wrote: I think it is also possible that the 3D geometry in the DWG file has been done using methods the result of which ArchiCAD cannot import.
I recall ACIS models were one such example.
More commonly are elements produced by AutoCAD add-on programs that require object enablers. These seem to be unreadable by any program other than AutoCAD (Revit included) unless the files are saved specifically to include the geometry. It's a bit like having an ArchiCAD project without the associated library parts.
