Beam Intersections Not Cleaning up

4hotshoes
Advisor

I am using the Beam Tool to make footings and the intersections will not clean up. They are all at the same elevation and the setting is on to clean them.  They all are flat and level. I don't usually see this problem. All of the endpoints are connected. Any Ideas on how to make them join?

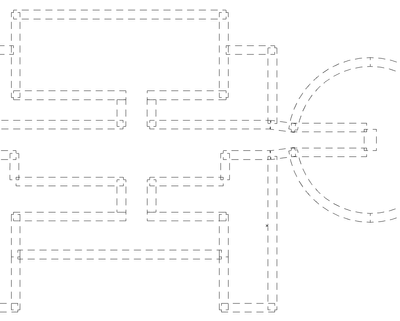

Screen Shot 2021-12-09 at 11.22.02 AM.png

Todd Oeftger
AC25 Mac MacBook Pro 15", 2019, 2.3 GHz i9, 32GB, Radeon Pro 560X 4GB, 500GB SSD, 32" Samsung Display (2560x1440)
6 REPLIES 6

Barry Kelly
Moderator

I am assuming they are all in the same layer.

Is the Intersection Priority Number for that layer set to 0 (zero)?

They won't trim if it is.



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Rico
Booster

Did you accidentally deactivate this option:



Capture d’écran 2021-12-10 à 08.12.31.png

iMac 27" 5K • macOS 10.15.7 Catalina • 40GB RAM | ArchiCAD 24 5004 FRA
Ryzen Threadripper 3970X • Windows 10 • 64GB RAM | ArchiCAD 24 Solo UKI

Lingwisyer
Legend

 They all are flat and level.

As in they have no depth? Unless they have changed something, things do not connect when they have a thickness of ZERO... Can you make then 0.01 instead?





Ling.

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win10 | R5 2600 | 16GB | GTX1660

The layer they are on have the intersection priority set to "1" not "0"

Todd Oeftger
AC25 Mac MacBook Pro 15", 2019, 2.3 GHz i9, 32GB, Radeon Pro 560X 4GB, 500GB SSD, 32" Samsung Display (2560x1440)

Ye that was the first thing I checked and said so in my first post. "intersection clean up" is on

Todd Oeftger
AC25 Mac MacBook Pro 15", 2019, 2.3 GHz i9, 32GB, Radeon Pro 560X 4GB, 500GB SSD, 32" Samsung Display (2560x1440)

No. They are all set to 12" thickness, not zero.

Todd Oeftger
AC25 Mac MacBook Pro 15", 2019, 2.3 GHz i9, 32GB, Radeon Pro 560X 4GB, 500GB SSD, 32" Samsung Display (2560x1440)
