Paneled wall display

Marky Lucky
Participant

Good evening, I would like to create a continuous surface made up of several panels juxtaposed together using the cube element. I continue to visualize their division in elevation and in section while they are perfectly juxtaposed. Do you have a solution?

10 REPLIES 10

archigreen
Contributor

Can you please send us a snapshot of your screen?

I would create a new wall (panel) with holes made by the Opening Tool and then place your custom panel on those holes. There won't be lines because it will be just one continuous wall.

I hope this helps.

ArchiGreen

ArchiCAD 20
iMac Mac OS X Sierra 10.12
4 GHz. Intel Core i7
16 GB 1867 MHz DDR3
AMD Radeon R9 M395X 4096 MB

Marky Lucky
Participant

Good evening

thanks for your time, i probably didn't understand your explanation.

I am attaching the screen so you can understand a little better.

I would like to create with the cube object a wall displayed as continuous in elevation and divided in plan.

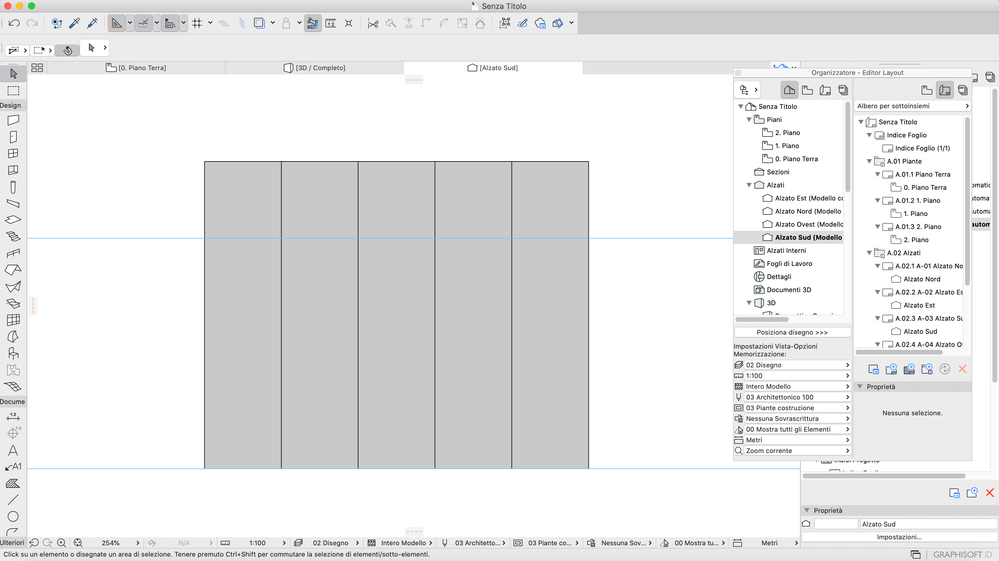

Here's what it looks like

Schermata 2021-10-08 alle 18.59.27.pngSchermata 2021-10-08 alle 18.59.16.png

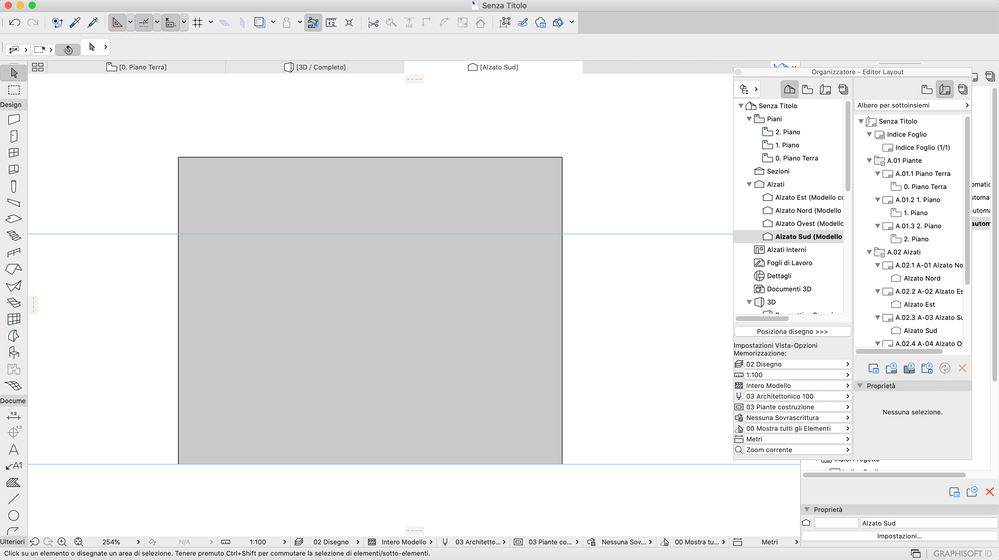

instead I would like to be able to visualize the elevation like this:

Schermata 2021-10-08 alle 18.59.44.png



if you can give me a hand I will be immensely grateful 😭

DGSketcher
Virtuoso

Why don't you just use a wall broken into segments? On plan if you use a different building material for alternate panels they should display end lines (make sure they are on in your settings). On elevation override the external surface to be the same for all the panels. If the base / reference lines are all connected then the surfaces will merge and there will be no vertical lines at the joints.

Apple iMac macOS Big Sur / AC24UKI (most recent builds)

Marky Lucky
Participant

Hello

thanks for the help but if I used the broken wall in segments I would not see the joints in the plan.

I didn't understand what setting you mean ?: (make sure they are enabled in your settings)



you can put a video or a link / photo to explain what you mean by: In elevation overwrite the outer surface to be the same for all panels. If the baselines / reference lines are all connected, the surfaces will merge and there will be no vertical lines at the joints.



Thank you very much for helping!



DGSketcher
Virtuoso

You will see the joints in plan if you assign a single materials say “Brick” to panel segments 1,3 & 5 and say “Wood” to panel segments 2 & 4.

If you then assign a surface override of say “Paint-Yellow” to all five walls they will merge in the elevations.

Have a look at the wall settings in help if these terms aren’t clear.

Apple iMac macOS Big Sur / AC24UKI (most recent builds)

Marky Lucky
Participant

I understand what you mean, I have faith that this is not a definitive solution but simply struggling ... ‌🤣

Thanks anyway for giving me your advice ...



There is no one who works in an fair exhibitions?😓😭

Lingwisyer
Virtuoso

Could you instead use a custom fill at your required interval within your Building Material using the Element Origin options?? If you are cutting it in plan.

AC18-23 AUS 7000
Self-taught, bend it till it breaks.
Win10 | E5620 x 2 | 24GB | K2200

thanks for the advice but this cannot be a definitive solution ...

Barry Kelly
Moderator

Because you want to show separate panels in plan, you can do as DGSketcher suggested and use different Building Materials for each alternate panel.

The second Building Material can be an exact copy of the first - just with a different name.



Or you can place each alternate panel in a different layer.

Then make sure that the two layers have different Intersection Priority numbers so that they do not trim (merger) with each other.

This will give you distinct panels in plan, but because the surface material is the same, they will merge in elevation and 3D.



The downside is each panel is a separate wall.



If you do as Ling suggested, with a fill applied to a building material, you can do it all with just one wall.

The only problem is you can not )as far as I know) control where the fill starts and stops in plan, so you can't set it out from the beginning of your wall.

You will also see the same fill in section.



Or of course just overlay your own fill or lines over the wall in plan - they won't be linked though.



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Lingwisyer
Virtuoso

Always forget that Element Origin is only valid for the rotation not the origin... My bad...

AC18-23 AUS 7000
Self-taught, bend it till it breaks.
Win10 | E5620 x 2 | 24GB | K2200
