Hello,



I am new to Archicad. I have a mesh that has been generated from theodolite data and is quite bumpy (even when edges are set to smooth not ridged ) due to erroneous points from the raw data.



Anyone know a way to  smooth out the mesh? e.g. reduce number of polygons that make up its surface/ reduce number of nodes/points. or is there a specific tool for this like there is on other cad programs.



all the best,



Jago





4 REPLIES 4

Steve Jepson
Advisor

it might help to see some pictures ?  Also, you may want to save the final object as a morph and smooth it that way  ?  you can send me the file if you like and I will see what I can do with it.  or upload it in a .zip file. download link ?    Here is a link to a KLM Theodolite file to KMZ file converter that might be of some use. ?   Archicad can open a .kmz (Google Earth File) - theoretically 🙂      KML to KMZ Converter Online - MyGeodata Cloud

ArchiCAD 25 4013 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2

jagotv
Participant

Hi Steve,

Thanks for commenting! I'll attach a link to a .zip of the Archicad file and you have a bash at it. https://drive.google.com/file/d/1NH4cR8T69joGxkAI8y2RQcX7UdJCusqy/view?usp=sharing

Oh and thanks for the kml tokmz converter!



all the best,



jago

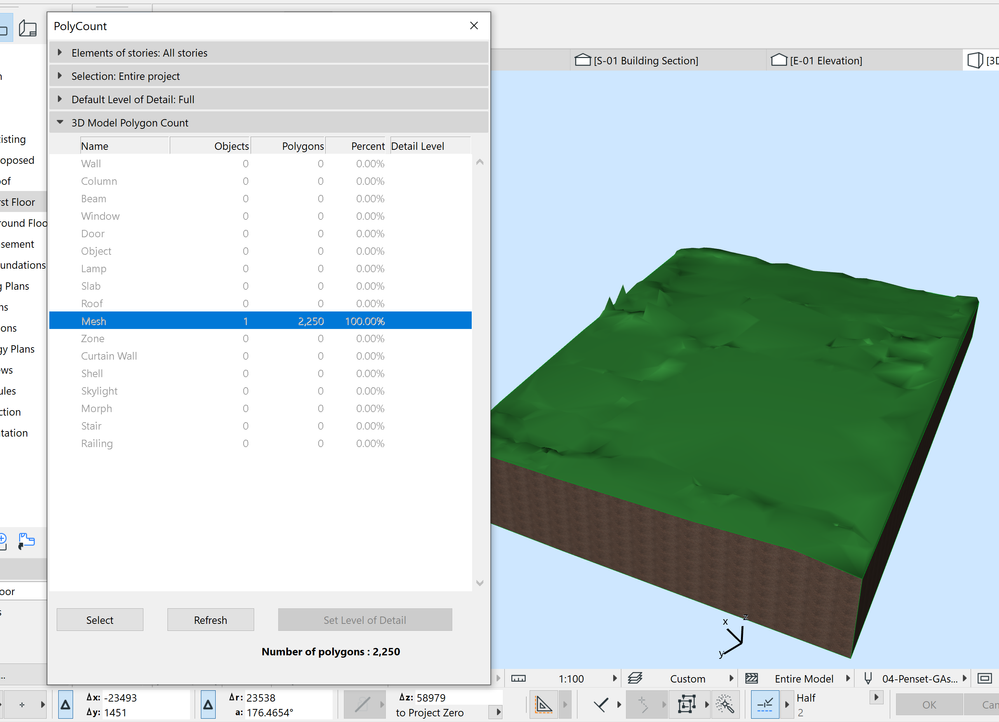

sorry it took so long to get back to you about this. I was traveling and didn't take my computer with me.   It looks fine to me.  2021-09-27_15-48-23.png



If there are some anomalies you can edit the nodes graphically in 3D to a more appropriate location or height.    https://www.youtube.com/watch?v=pbQ-gZc0PMc   ??

ArchiCAD 25 4013 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2

jagotv
Participant

thank you Steve!
