Autotext label on beam with segment

Achille Pavlidis
Enthusiast

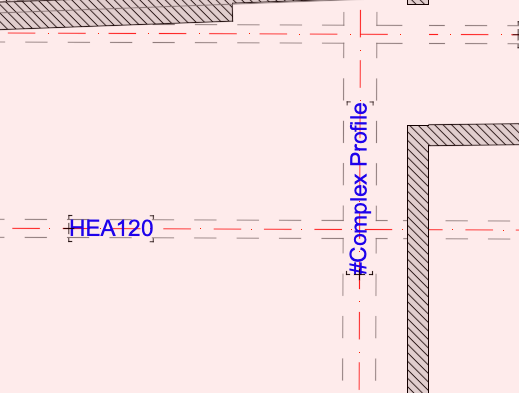

Is there a reason why the autotext label with #Complex Profile as setting does not recognise the complex profile of a beam with segments?

And is there any workaround to fix this???


Screenshot 2023-06-16 at 3.34.02 PM.png
Mac OSX 13.6.6 | AC 27 INT 5003 FULL
2 ACCEPTED SOLUTIONS

Accepted Solutions
Solution
Tim Ball
Expert

Each segment can have its own classification and properties and with its own auto text setting. I must admit I find it a bit annoying but if you do want to label each segment it is at least flexible.

Tim Ball

AC26, iMac

User since V5

View solution in original post

Solution
Barry Kelly
Moderator

It does, you have to TAB to the beam segment before you click to place the label.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
