Custom grid for master layout

cocoloco
Expert

Hi! Is there a way to create a custom grid for master layout or it is just what it is? I want to create grids for different scales, and not just regular look window, need one irregular. TY!



Operating system used: Mac Apple Silicon

MacBook Pro, Sonoma: 2.6 GHz 6-Core Intel Core i7, Intel 16GB mem,
Archicad Solo 26 and 27 (in testing mode)
1 ACCEPTED SOLUTION

Accepted Solutions
Solution

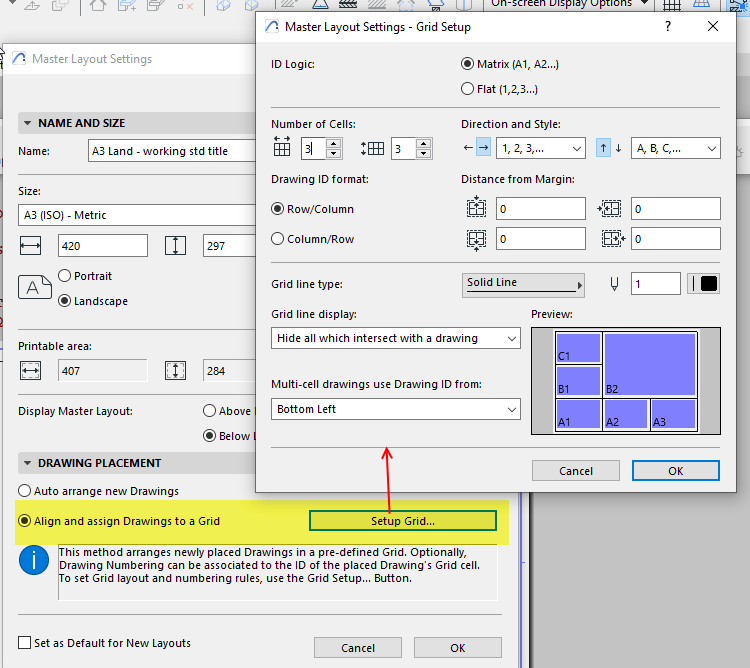

I think Cocoloco may be talking about the grid in the master layouts used to automatically arrange drawings as you place them?






I don't know any other settings other than these, but it just seems to be a simple grid and not very customisable.

And layouts don't have scales, it is the drawings you place that have the scale.



Barry.



One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

6 REPLIES 6
mthd
Ace

Some options to consider. 1) Customization within the user interface of the window dialogue. 2) Use a Curtain Wall as a window to create a custom grid. 3) GDL script editing of an existing window in the library. 4) CI tools window builder (This is what I would typically use)

AC8.1 - AC28 ARM AUS + CI Tools
Apple Mac Studio M1 Max Chip 10C CPU
24C GPU 7.8TF 32GB RAM OS Sequoia
Keep it Perpetual !
Solution

I think Cocoloco may be talking about the grid in the master layouts used to automatically arrange drawings as you place them?






I don't know any other settings other than these, but it just seems to be a simple grid and not very customisable.

And layouts don't have scales, it is the drawings you place that have the scale.



Barry.



One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Would you mind to share printscreen please? I thought it would be much easier, its just lines in layout to separate new views? Feeling discouraged 😒

MacBook Pro, Sonoma: 2.6 GHz 6-Core Intel Core i7, Intel 16GB mem,
Archicad Solo 26 and 27 (in testing mode)

Oh yes this! I actually like how archicad has there in that setting illustration as you have the one big grid with small around it, but then I clicked on it and it looks just all small. So I thought about customizing the grid so I am able to add a lil larger scale per needs.

Not a big deal if its not possible but bummer a bit

MacBook Pro, Sonoma: 2.6 GHz 6-Core Intel Core i7, Intel 16GB mem,
Archicad Solo 26 and 27 (in testing mode)

Whoops ! Wrong type of grid, I must be going coco loco 🤪. Glad @Barry Kelly sorted this one out for you. Have fun.
