Dimension Text Background Opacity

Paul Roper
Booster

Hi all,


I've just installed Archicad 27 3001 NZE Full.

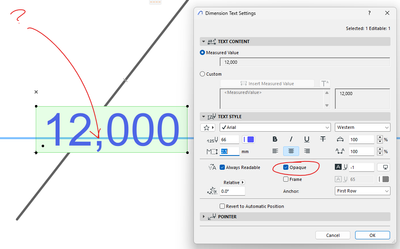

I've noticed that when I create a Dimension object, with Text Style set to have an Opaque background, the text box appears behind the dimension line (as per attached image).



This behavior is not what I have come to expect. Is there a toggle or option I am missing?



I am aware of the Within Line option, but this is not what I am looking for as it does not behave as I would expect with my current workflow (for example: if I want to manually relocate the text box due to clashes with something else in the drawing).



dimension text line question.png



I tried to edit the Display Order, but this setting does not appear to apply to Dimension text boxes.



Operating system used: Windows 11


AC23–26 3001 NZE | i511400F | 32GB | GTX1650
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Barry Kelly
Moderator

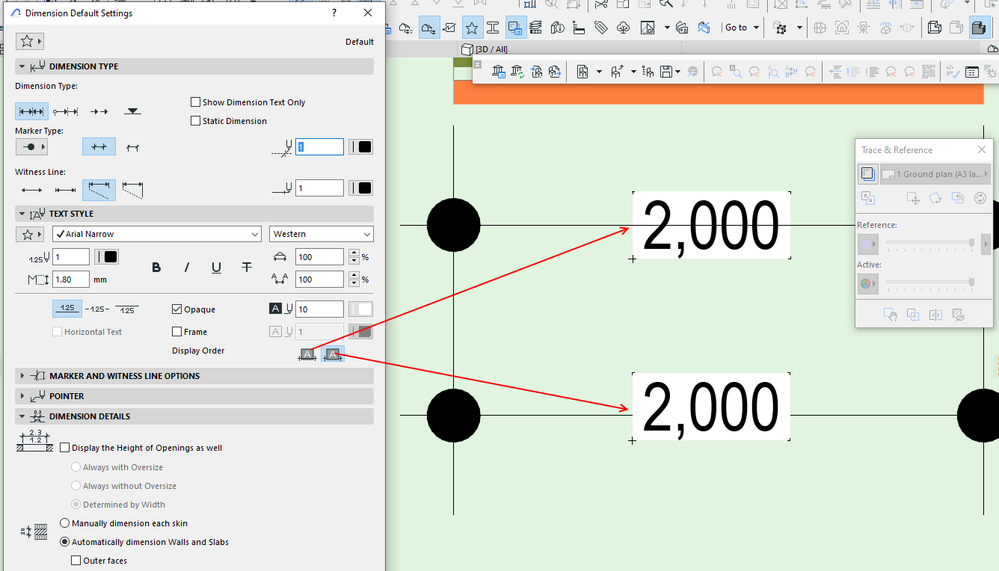

Select the dimension line and not just the text and there will be a display order setting.






Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
