Doors NOT showing handles in ELEVATION only , showing in 3d

cocoloco · ‎2024-11-12

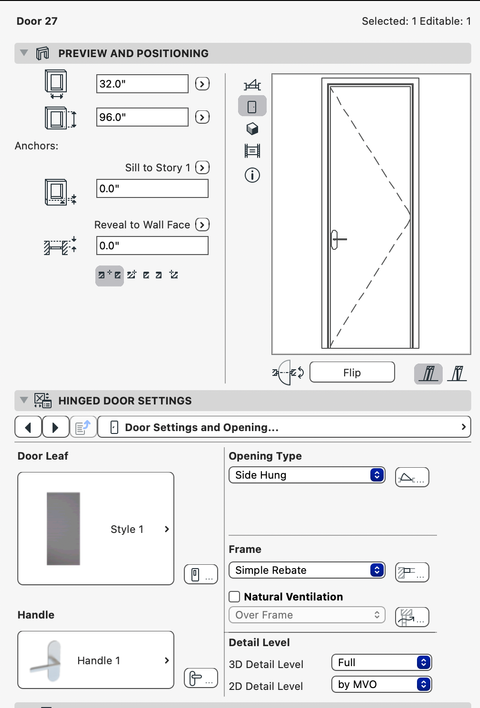

Hi! I have a strange situation. Doors are set up well, and showing handles in 3D, but not in elevation.... I checked model views, doors setting... can't find what's the issue this time..

Screenshot 2024-11-12 at 9.55.56 AM.png

Screenshot 2024-11-12 at 9.56.03 AM.png

Screenshot 2024-11-12 at 9.56.20 AM.png

Operating system used: Mac Intel-based

MacBook Pro, Sonoma: 2.6 GHz 6-Core Intel Core i7, Intel 16GB mem,
Archicad Solo 26 and 27 (in testing mode)

BrunoH · ‎2024-12-12

Hi cocoloco,

In MVO, did you check this one?


ArchiCad 3.43 to 28
MacOS Monterey

View solution in original post

Lee Hankins · ‎2024-11-12

Have you checked the settings in Model View Options under Detail Level of Doors, Window and Skylight Symbols to make sure handles are turned on in elevation?

Lee Hankins
ArchiCAD 4.5 - Archicad 28 Apple Silicon 27.3 | 28 Apple Silicon
macOS Sequoia (15.1.1)

cocoloco · ‎2024-11-12

I had all on. Believe it or not..... after restarting archicad, all of the sudden we can see now handles.. Very interesting

MacBook Pro, Sonoma: 2.6 GHz 6-Core Intel Core i7, Intel 16GB mem,
Archicad Solo 26 and 27 (in testing mode)

BrunoH · ‎2024-12-12

Hi cocoloco,

In MVO, did you check this one?


ArchiCad 3.43 to 28
MacOS Monterey
