One a .dwg is attached as an Xref, can we re-access the layers to control the layers visibility without binding the Xref?

AC 26 - 5002 USA FULL
Win11 Pro 22H2 - 13th Gen Intel(R) Core(TM) i9-13900KF 3.00 GHz - 64 GB - 64-bit operating system, x64-based processor
2 ACCEPTED SOLUTIONS
3 REPLIES 3
Solution
Lingwisyer
Guru

The dwg layers do not appear ammended to the bottom of your Layers Panel? I do not usually place xRefs and instead just place Drawings, but I think that was how it worked for me previously.

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win10 | R5 2600 | 16GB | GTX1660
Solution
Barry Kelly
Moderator

I have never used XREF.

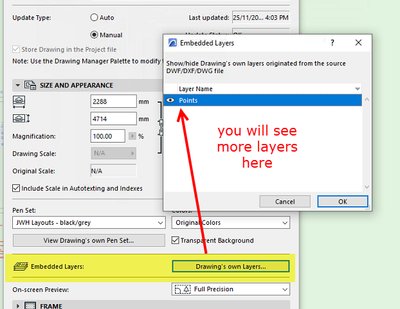

I just place a DWG with the 'drawing' tool and then in the drawing settings you can access the embedded layers.

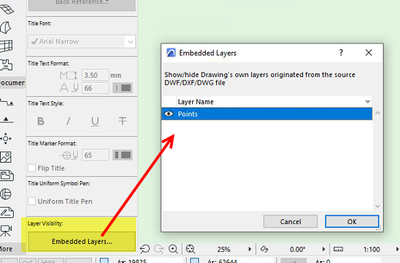

You can also access from the info box when you select the placed drawing ...




You won't see the layers in the regular layer dialogue though.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

 I like to work with Xrefs because I want to avoid adding layers to the file.
